GHG5113306R0001, Eaton IP66 Cable Mount 2P + E Power Connector Socket ATEX, Rated At 16A, 250 V

Eaton CEAG Explosion Protected Plug and Socket System

Eaton CEAG Crouse-Hinds enhanced BS4343 (IEC309) industrial power connectors are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used standard versions. These heavy-duty connectors provide a reliable high-performance power supply connection even under vibration or the effects of an aggressive atmospheric environment.

Features and Benefits

• Patented plug and turn connections
• Heavy duty and high-quality connectors designed for power distribution in industrial settings
• Time-saving easy plug-in with low insertion force
• Ingress protection to IP66/67
• Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications

CEAG Standard hazardous area plug connectors will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plug connectors will NOT mate with standard sockets and couplers
Couplers will accept Enhanced and Standard Plug connector

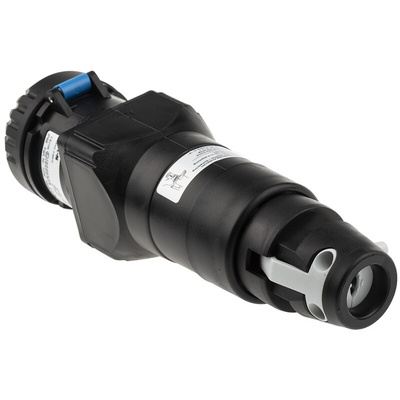

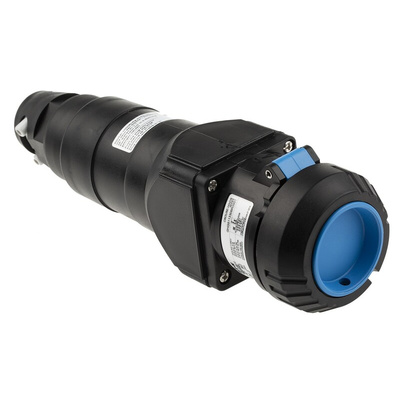

Eaton CEAG Crouse-Hinds Hazardous Area Power Connector Socket, 16A, 250V - GHG5113306R0001

Use this connector socket from Eaton CEAG Crouse-Hinds to dependably power machinery and driving equipment in even the most challenging conditions. Nickel-plated brass contacts ensure a strong join, while a convenient locking mechanism secures the connection in place. This keeps the socket from shaking loose even when subjected to the kind of vibrations common to demanding industrial environments. The glass-fibre-reinforced polyester housing offers strong protection – an IP66 (ingress protection) rating indicates the unit is safe from infiltration by dust, particulates and water.

• Pole format of 2P+E (single phase plus earth) provides additional ground for improved safety
• Operating temperature range of -55°C to +55°C for use in extreme industrial environments

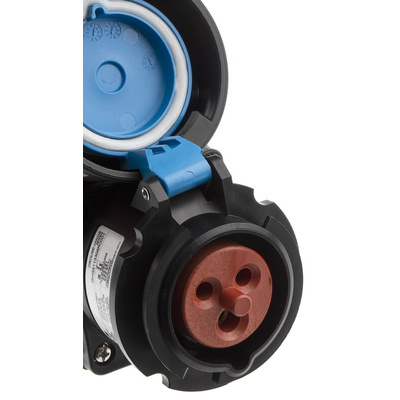

• When unmated, a convenient hinged cover fits snugly over the socket for additional protection
• Strain relief ensures longer-lasting performance from cabling

Is this component suited to hazardous industrial conditions?

Yes, this coupler is designed to accommodate hazardous conditions, including potentially explosive environments.

How do I mount this socket?

This coupler can be mounted directly onto the cable for quick and convenient mating.

Note

Eaton formerly known as CEAG

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039

Eaton Crouse Hinds Ex-Plugs and Receptacles - Datasheet

PTB 99 ATEX 1039

Explosion Protected Plug and Socket System - Operating Instructions
