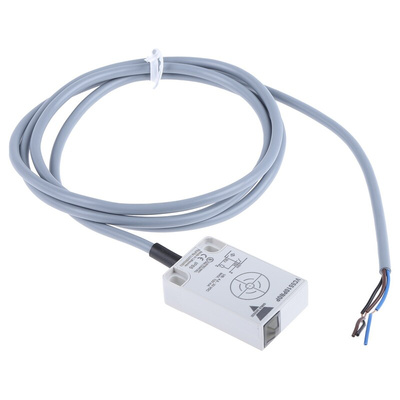

VC5510PNOP, Carlo Gavazzi Capacitance Switch Level Sensor, PNP Output, Chassis Mount, ABS, Polycarbonate Body

Carlo Gavazzi Level Sensor

The Carlo Gavazzi capacitive level sensor has to sense range from 2mm to 10mm and it can be adjustable via a single turn potentiometer. It comes in a flat-pack housing, It is easy mounting with two M4 screws. It is 35mm wide and 55mm long. Its supply voltage ranges between 5VDC and 30VDC.

Features and Benefits

LED indication when activated
Output is DC 100mA, PNP type
Power ON delay
Max 40ms (No delay version), Max 5s (ON/OFF delay versions)
No-load supply current is less than 10mA
Housing material is grey, ABS and polycarbonate

Applications

Whirlpools for switching ON/OFF the heating element
Starting and stopping the air pumps
Controlling the level of the water, disinfection fluid, etc.

Certifications

UL approved
CE certified
IP65 rated

Type VC5510 Capacitive Level Detector - Data Sheet

UL E163113
