440G-A27163, Allen Bradley Guardmaster Actuator for Use with TLS-GD2 Interlock Safety Switch

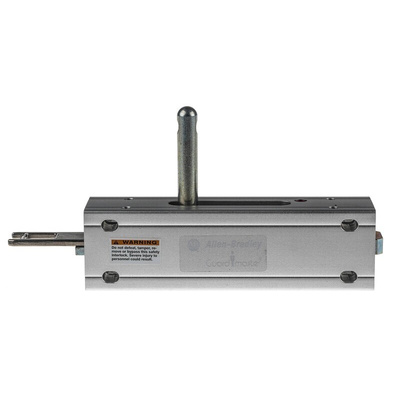

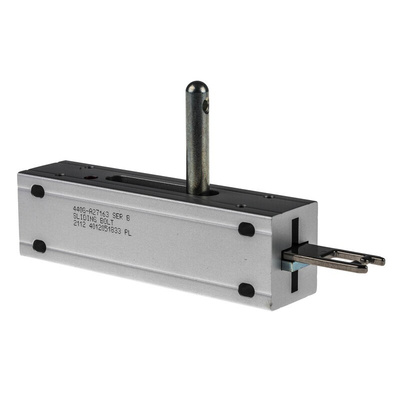

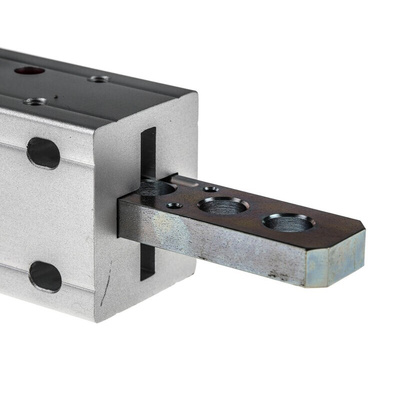

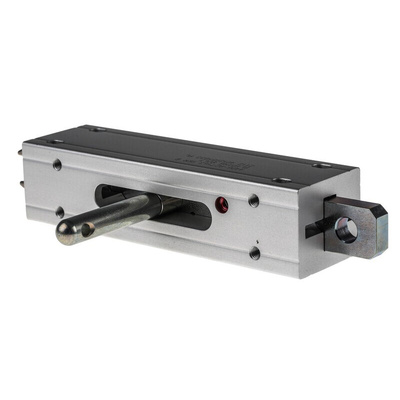

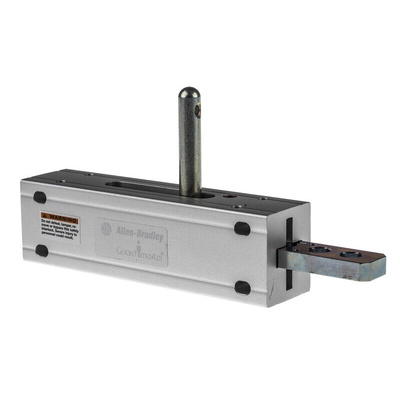

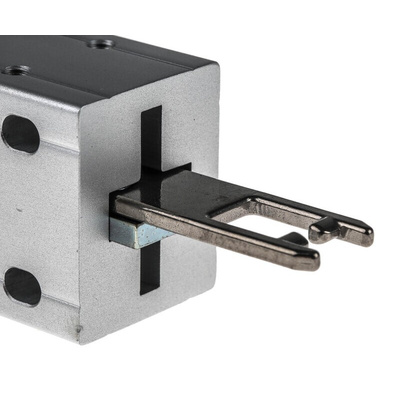

Allen Bradley Guardmaster 440G-A27163 Sliding Bolt Actuator (GD2 model)

Ensure that your guard-locking system is complete with the 440G-A27163 Sliding Bolt Actuator from Allen Bradley Guardmaster.

The 440G-A27163 unit is a Sliding Bolt Actuator which is suitable for use with the TLS-GD2 Safety Interlock Switch. This reliable actuator is manually operated and can be extended to work with an interlock switch. When retracted it can be locked off with up to 3 padlocks, offering dependable security. It is also made of tough stainless-steel to ensure superior durability, and the housing is comprised of aluminium. It has 4 x M5 fixings. This actuator should be permanently attached to the guard door.

Dimensions: 3.3in (length) X 1.57in (width) X 5.51in (height)

This actuator is used with a safety interlock switch to provide safe-access to machinery and hazardous areas, offering greater protection for personnel and equipment.

Features and Benefits:

• Actuator for use with TLS-GD2 interlock switch
• Sliding Bolt Action, manual operation
• Stainless-steel actuator and aluminium housing

Applications:

Sliding
Hinged
Lift-off guards

What are Safety Interlock Switches?

Safety Interlock Switches are locking devices which can be used to monitor the position of a machine guard door and turn off the power supply when the safety barrier is released. They can also be used to keep a guard securely locked when machinery is running. This helps to prevent personnel from accessing a hazardous area where machinery may be in motion and minimises risk of injury or equipment damage. Interlock switches are often used for industrial applications.

What is a Safety Interlock Actuator?

The actuator is a separate component which is usually inserted into the switch to enable the locking mechanism to work. It forms a key part of the overall safety interlock unit. Different types include: 90º, Flat, Standard, Semi-Flexible, Fully Flexible, and Specialty.
