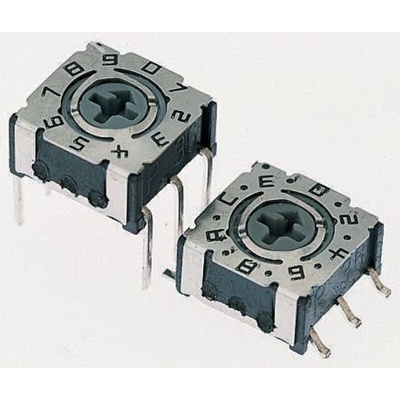

P36S106, Hartmann 16 Way Surface Mount DIP Switch, Rotary Flush Actuator, Переключатель

3793991
Номер производителя: P36S106Производитель: Hartmann
Цена за шт.
1295.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Rotary Encoded Low Profile In-Line Switches

P36THR1 versions have (L508) left angular 5.08mm terminals

Flux sealed & process washable
Contact rating: 150mA @ 24Vdc
Contact resistance: <80mΩ
Mechanical life: >104 operations
Operating temperature: -30 to +90°C
Positive detent
340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max
Gold plated contacts

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Техническая спецификация
pdfP36/PT65 Series Rotary DIP Switch Data Sheet
pdfDatasheet
