FFSMC10AW, Sensata / Cynergy3 Sensata/Cynergy 3 FFSMC Series Cable Mount PE Float Switch, Float, 5m Cable, Direct Load, 250V ac Max, 110V dc Max

FFSMC Series - WRAS Approved

Submerged type float switch for sewer and industrial waste systems and turbulent industrial fluids. Self cleaning switching element with 10 amp contacts, this makes the switch insensitive to condensation and humidity caused by fluctuations in temperature.

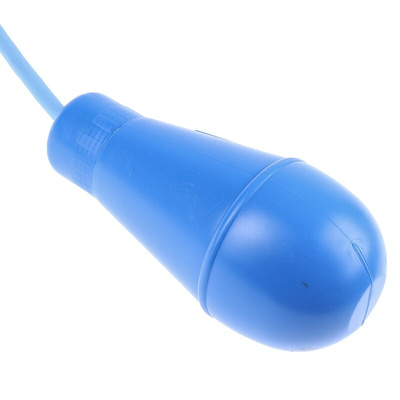

Rounded moulding to prevent the accumulation of solids
Insensitive to Humidity and Condensation
Water Resistant up to a Depth of 100m
Switch Horizontal ±15° of Horizontal
Fitted with Internal Weight Fixing the Centre of Gravity and Rotation Close to the Cable Entry

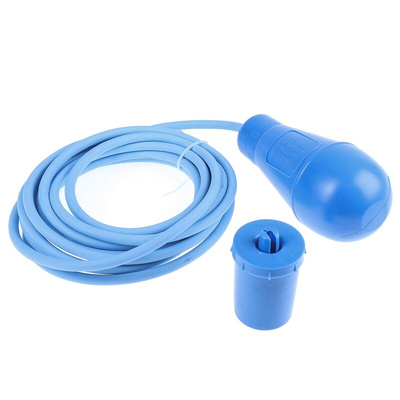

External Counterweight Supplied to Adjust the Pivot Position

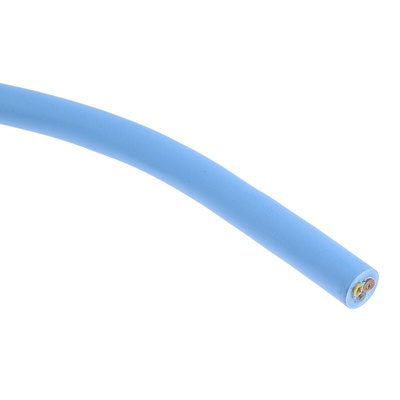

WRC Approved PVC Cable

Note

The Water Fittings Regulations (or by-laws 2000 in Scotland) are national requirements for the design, installation and maintenance of plumbing systems, water fittings and water using appliances. These require that all materials and fittings that will come into contact with supply water should be approved under the Water Regulations Advisory Scheme (WRAS).

Sensata Cynergy3 Direct Load Float Switch, 5m Cable Length, 10 Bar - FFSMC Series - FFSMC10AW

Need to monitor changes in liquid levels? Choose this float switch from Sensata Cynergy3. It's a submerged-type switch commonly used in reservoirs and with industrial wastewater systems. The body suspends in the water from the sturdy cable while the probe within reads the liquid pressure and converts it to an electrical current. The reading travels up the cable to the switch to activate it when levels rise or fall. This ensures that liquids stay at an appropriate level to prevent underfilling or overflow.

Features & Benefits

• Watertight seal for resistance to humidity and condensation
• Rounded design prevents the build-up of solids around the body
• Long 5m cable length for an extended reach into large industrial containers
• Broad operating temperature range of 0°C to +55°C for use in cold and hot environments

What is this float switch made of?

The body of this float switch is made of high-density polyethylene (HDPE), which provides excellent electrical insulation for greater safety and resistance to wear. The density of the material also means it can withstand turbulent water currents up to a depth of 100m for use in heavy-duty applications.
