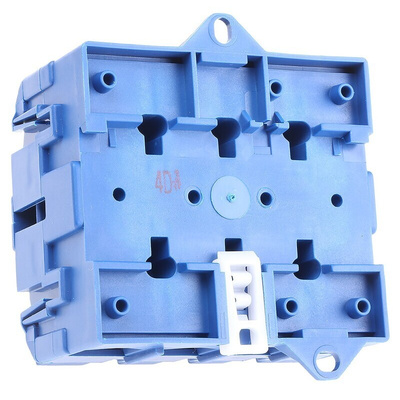

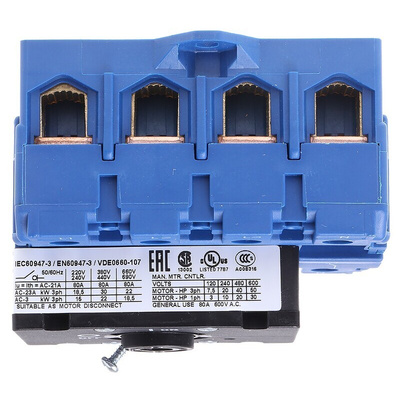

KG80 T204/GBA302 VE, Kraus & Naimer 4P Pole Isolator Switch - 80A Maximum Current, 30kW Power Rating, IP65

Single Hole Mounting Operator 3 & 4 Pole Switch-Disconnectors, IP65

Single hole mounting
Handle padlockable (x4) in "OFF" position
Adjustable metal operating shaft, length 120mm
Door interlocked to prevent opening of panel door while switch is in the 'ON' postion
Fingerproof terminal on 25 to 63A switches
Live terminal cover provided for 80A & 100A switches
Nominal voltage: 690V
Side mounting auxiliary contacts can be added, see typically stock no. 319-691
Base mounting via DIN rail or screw to back of panel

Note

Stated motor rating, Util. Cat. AC23A/AC3, is for 3 phase, 380/440V supply

Standards

BS EN 60947-3, EN 60947-3, IEC 60947-3, VDE 0660, EN 60204-01

Kraus & Naimer

All have a nominal voltage of 690V. The stated motor rating utilisation category AC23A/AC3 is for 3 phase 380/440V supply.

Technical Data & Drawings
