011-149, Smartscan Dual-Channel Light Beam/Curtain Safety Relay, 24V dc, 2 Safety Contacts, Реле безопасности

Standards

EN61496-1 Type 2, and IEC 61496-2-Type 2 and safety classification EN954-1 Category 3

Warning

These devices must be installed and used in accordance with the installation and operating instructions supplied with each product

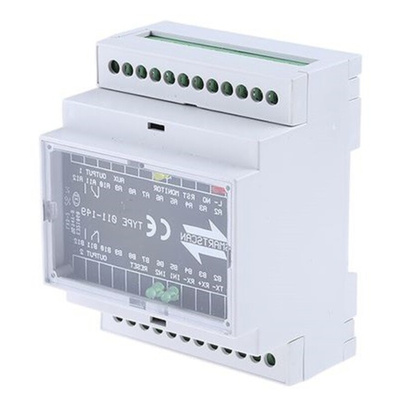

Smartscan MFU Type 011149

The MFU Type 011149 from Smartscan offers you a reliable, smart and affordable safety relay. The type 011149 conforms to ISO 9001:2008 certification, assuring you full confidence in the quality, reliability and overall safety of this piece of Smartscan equipment.

What are some of the features?

• LED status indicators offering you quick visual checks to ensure safety can be easily monitored at all times.
• A reset function allowing you to manually override the relay whenever needed.

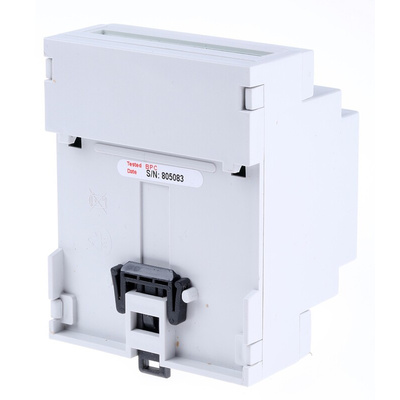

• DIN Rail mounting to an enclosure of 70mm
• External device monitor letting you know if your relay has any issues, such as welded contact.
• Safety monitored output relays with contacts rated at 250V AC, 4A.
• Built to the reliable EN ISO 13849 with Power loss (PL) category D.
• Third mute input channel (mute enable) is provided with the unit
• Dual input is available for the PLUS series of light curtain and a ’guard override’ function is then available to help negate the light curtain for a short period of time where needed. This may be essential in some automated packaging industries that need to prevent personnel but also allow pallet loads through.

Safety indication status:

• Red LED on = Power on
• Green LED on = Input on
• Yellow LED on = EDM on

Safety outputs:

• 2 x Fail-safe change over contacts, each with a 250V AC, 4A rating
• The multifunction safety relay unit 011149 has passed Type Examination from European Notified Body, SAFENET to the Machinery Directive. This type of certification should provide you with the assurance that this safety relay meets all the relevant safety regulations and requirements expected of such a type of product.
