CE.82233-rb, Elesa, 5 Digit, Counter, Механический счетчик

3826574
Номер производителя: CE.82233-rbПроизводитель: Elesa
Цена за шт.
17856.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

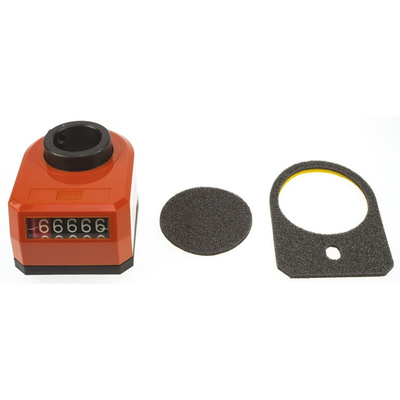

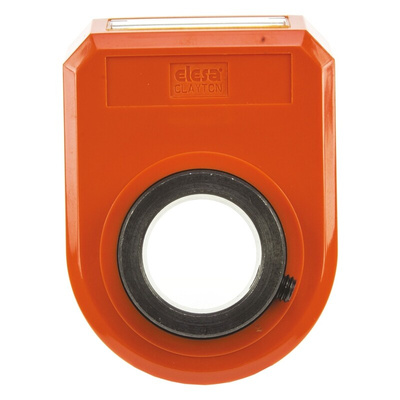

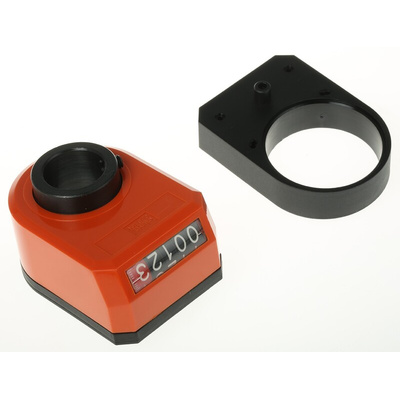

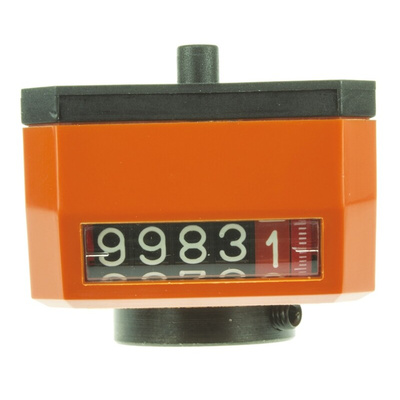

Elesa Digital Mechanical Position Indicator

The Elesa DD52R series mechanical resolution counter is a 5-digit direct drive, digital position indicator. It has clockwise shaft rotation with a maximum shaft speed of 625rpm. It is the black case, high-resistance, polyamide based (PA) technopolymer. It can be used for reading settings and outputs on machinery, as well as equipment requiring adjustment with the help of rotating shafts or lead screws.

Operating use:
To give an exact reading of distance moved by relating the reading of the indicator to the thread pitch of the shaft or lead screw (type dependant on the pitch -see table)
To count the number of turns of a shaft (types 001.00 or 0001.0) for an operator to set a specific setting to perform a given function
Fitting Instructions:
Drill 6mm by 10mm deep hole 22mm from the centre of the shaft to accept rear locating pin
Zero set shaft and indicator reading
Locate on the shaft and tighten the grub screw

Features and Benefits

Pitch is 4.0
Display after 1 rev is 0004.0
Impact resistant thermoplastic case
Ultrasonically welded to prevent tampering and dirt ingression

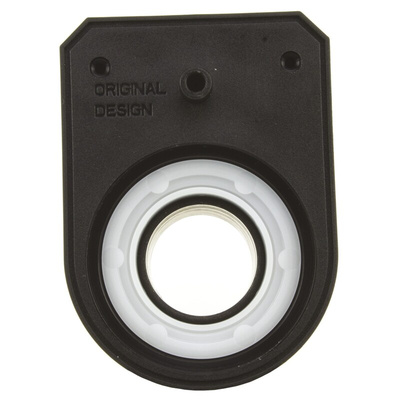

Rear brass bushing with double sealing
Drive shaft diameter is 14mm

Applications

Material handling equipment
Rapid transit vehicles
Street sweepers
Farm machinery
Carts for recreational use

Certifications

IP67 rated

Техническая спецификация
pdfDatasheet
Direction Of Rotation:
Top Coming
Диаметр приводного вала:
20мм
Количество цифр:
5
Максимальная скорость вращения вала:
625об/мин
