8761NH.00305, Belden Twisted Pair Data Cable, 1 Pairs, 0.35 mm², 2 Cores, 22 AWG, Screened, 305m, Chrome Sheath, Кабель

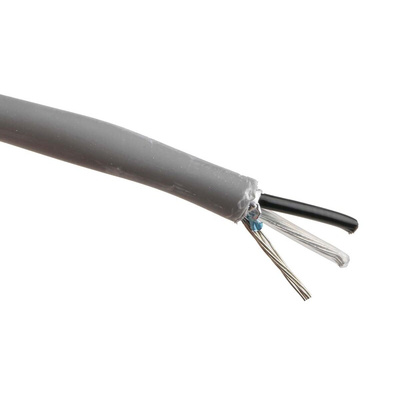

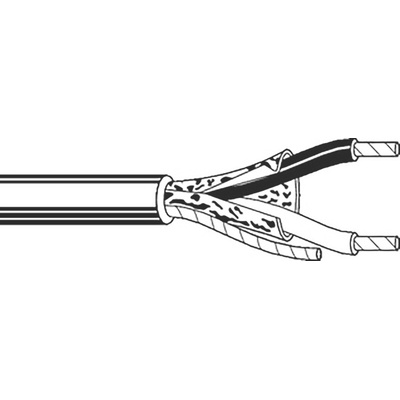

Belden Screened Twisted-Pair Data Cable, 22 AWG, 305m Length - 8761NH.00305

Use this twisted-pair data cable from Belden for speedy data transmission. It's an F/UTP (foiled with unshielded twisted pairs) type, which means it's protected against electromagnetic interference (EMI) and radio frequency interference (RFI). This data cable is screened as well as being shielded with lightweight Beldfoil, so it experiences minimal signal loss and prevents external electrical interference from affecting the transmitted signal. A 305m reel length makes it ideal for applications requiring long cabling runs. This type of cable is frequently used in computing and instrumentation setups.

Features & Benefits

• Polyethylene (PE) insulation to protect against electric shocks
• Outer jacket is made of LSZH (low smoke zero halogen) material, so it won't emit toxic fumes in the event of a fire
• Compact outer cable diameter of 4.9mm means it's ideal for installation in areas where space is limited
• Operating temperature range of -20°C to +80°C for reliable performance in challenging environments

Applications

• Electronic instruments
• Audio sound systems

What's the bulk weight of this cable?

This 304m cable has a bulk weight of 6.8kg. This means it's easy to carry around, handle and store.

Standards

IEC 332-3C

Datasheet

Cable Selection Guide
