8762NH.00305, Belden Twisted Pair Data Cable, 1 Pairs, 0.5 mm², 2 Cores, 20 AWG, Screened, 304m, Chrome Sheath, Кабель

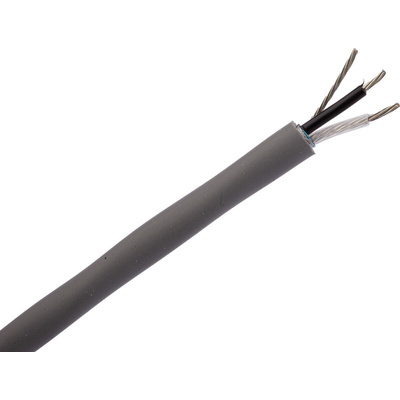

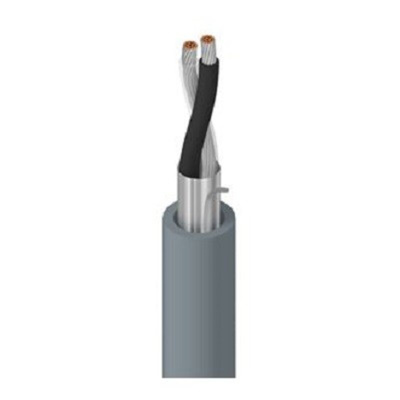

Belden Screened Twisted-Pair Data Cable, 20AWG, 304m - 8762NH.00305

Use this twisted-pair data cable from Belden for reliable data transmission. It features the brand's patented Beldfoil shielding, which is made of aluminium and polyester foil. This ensures the cable is thin, lightweight and flexible, while remaining strong and offering optimal shield coverage. Its outer jacket is flame retardant, so it prevents the spread of fire in an emergency. It's also a safe choice, as it's a low smoke zero halogen (LSZH) type, which won't emit toxic fumes when it burns. A 304m reel length makes this an ideal choice for large-scale applications that need long runs of cable.

Features & Benefits

• Conductor-to-conductor capacitance of 88.6pF/m (picofarad per metre) delivers high-quality signals
• F/UTP (foiled with unshielded twisted pairs) cable type means it's protected against harmful electromagnetic interference (EMI)
• Wide operating temperature range of -15°C to +80°C for use in demanding industrial applications

Applications

• Instrumentation
• Control systems
• Computer networks

What's the maximum pull tension of this cable?

The maximum pull tension of this cable is 210N (Newtons). This means it's strong enough to withstand substantial pulling force without any risk of deformation or damage.

Standards

IEC 332-3C

Cable Selection Guide

Datasheet 8762NH.00305
