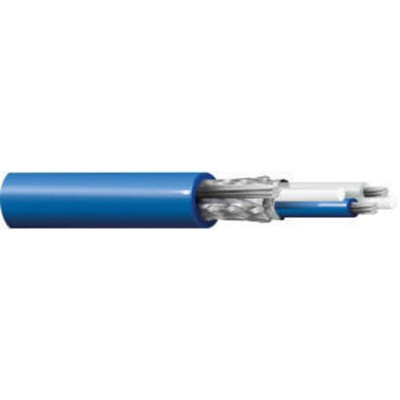

9463NH.00305, Belden Shielded Blue Twinaxial Cable, 6.4mm OD 305m, 78 Ω impedance, Кабель

Belden Twinaxial Cable, 28AWG, 78Ω Characteristic Impedance - Blue Hose Series - 9463NH.00305

Want to send data without a hitch? Pick up this twinaxial cable from Belden. You can use it to minimise signal interference and provide a shielded connection. A low capacitance of 116pF/m reduces signal distortion, so it reliably transmits data over long distances. Tinned copper cores offer good conductivity as well as resistance to corrosion, so you can rely on this cable in the long term. To boost safety, the LSZH sheath emits minimal smoke if burned and doesn't release halogen.

Features & Benefits

• Flame-retardant to prevent the spread of fire
• PE insulation protects against short circuiting
• Velocity ratio of 66% for lightning-fast data transmission

Applications

• Telecommunication systems
• Data centres
• Medical equipment

How long is this cable?

It has a length of 305m, ensuring it's a far-reaching solution that's suitable for large-scale applications.

Standards

NEC CM CL2; UL2464 (IEC 332-3C)

Datasheet

Cable Selection Guide

Catalogue - Cables, Wires And AccessoriesFor Industrial Applications
