9501NH.00305, Belden Multipair Industrial Cable, 1 Pairs, 0.25 mm², 2 Cores, 24 AWG, Screened, 305m, Chrome Sheath, Кабель

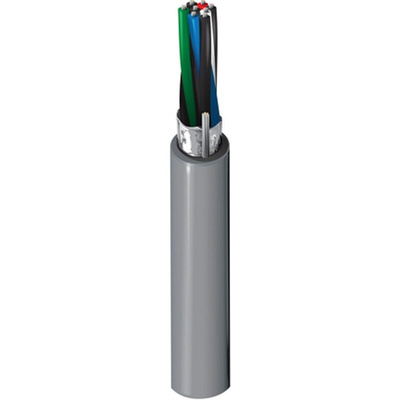

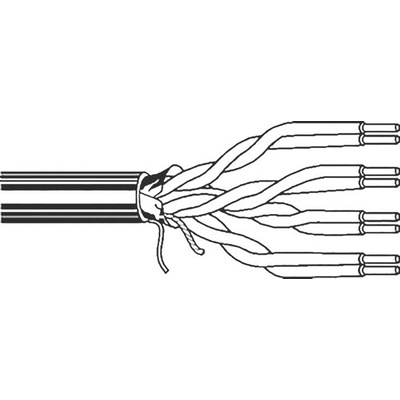

Belden Stranded Twisted Pair Industrial Cable, 4.3mm OD, 305m Length - 9501NH.00305

Meet the demands of indoor signal transmission using this Belden twisted pair industrial cable. The conductors are made from tinned copper to provide reliable conductivity for effective data transfer. This cable features a F/UTP (foiled/unshielded twisted pair) shield, meaning there's one overall shield for the conductors. The shield is a patented Beldfoil tape made from aluminium polyester that protects against EMI (electromagnetic interference) and boosts transmission speed. You can use this cable in high-heat environments thanks to its maximum operating temperature of +80°C.

Features & Benefits

• Polyethylene insulation prevents overheating and protects against electric shocks
• Flame-retardant properties for increased fire safety
• Colour-coded conductors for ease of identification when wiring
• LSZH (low smoke zero halogen) cable jacket to minimise toxic fumes in the event of a fire

Applications

• LAN (local area network)
• Measuring instruments
• Aerospace industry

Does this cable have a drain wire?

Yes, this cable has a drain wire made from tinned copper. This bare 24AWG (American Wire Gauge) wire redirects electrical noise to the ground, preventing signal distortion. The tin coating makes it highly resistant to corrosion for long-lasting use in harsh environments.

Standards

UL2464; NEC CMG (95xx) IEC 332-3C (95xx NH)

LSZH Datasheet

Cable Selection Guide

Belden 9501NH.00305 Datasheet
