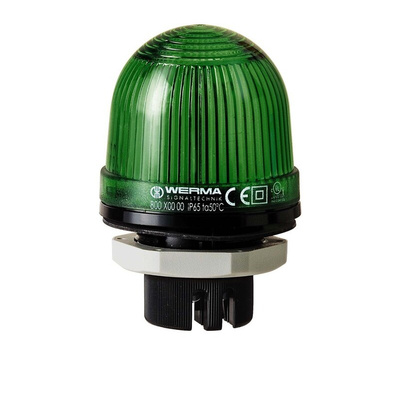

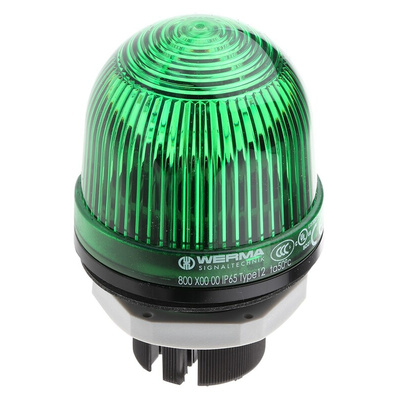

800.200.00, Werma EM 800 Series Green Steady Beacon, 12 → 230 V ac/dc, Panel Mount, Incandescent Bulb, IP65, Маячок

Static Installation Beacon - 800 Series

Body constructed from ABS and lens Polycarbonate. All units are IP65.

Suitable for panel mounting applications
Polycarbonate caps have a shock resistance of 20J according to ENV50014
Tube mounting adaptor available
Vandal proof

Note

Bulbs are not supplied and must be purchased seperately

WERMA Beacon, 57mm Base Diameter, Polycarbonate Lens - EM 800 Series - 800.200.00

Signal the operating status of a system with this green beacon from WERMA. It has a wide operating voltage range of 12 to 240V AC/DC, making it a versatile choice. The body is made from a blend of PC and ABS, so the unit is resistant to wear and impact for use in harsh environments. Thanks to its pull-proof design, your cable will be protected against accidental disconnection.

Features & Benefits

• Wide operating temperature range between -20°C and +60°C for use in demanding environments
• IP65 rating indicates it's dust-proof and protected against low-pressure water jets
• Screw terminal type for easy installation without the need for complex tools

Applications

• Building construction
• Robotics and automation
• Warehouses

Where can I mount this beacon?

This beacon is designed for mounting on a panel. Thanks to its compact size of 54 (height) x 57mm (diameter), it will take up minimal space.
