GXE51C, Honeywell GXS Series Plunger Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 240V ac Max, 4A Max

Honeywell Snap-Action Plunger Limit Switch, 240V AC, 4A - GXS Series - GXE51C

Use this snap-action limit switch from Honeywell to help you automate the process of switching electrical devices on and off. It has a plunger actuator that automatically connects NO (normally open) and NC (normally closed) silver contacts when released, ensuring rapid switching without manual triggering. A long mechanical lifespan of 2,000,000 cycles means it won't need to be replaced frequently. This switch is made of epoxy-coated zinc and aluminium, making it corrosion-resistant and durable for use in harsh environments. Its IP67 (ingress protection) rating means it's protected from dust and submersion in 1m of water for up to 30 minutes.

Features & Benefits

• Compact dimensions of 88 (length) x 52 (width) x 30mm (depth) for installation in areas where space is limited

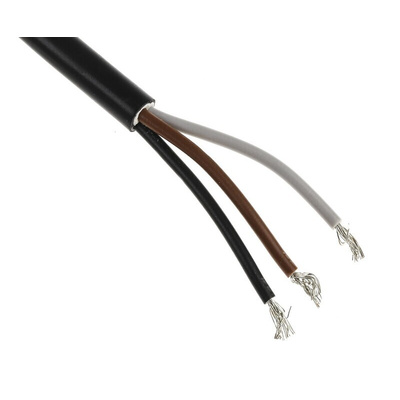

• Supplied with a pre-wired 5m cable connection for quick and flexible installation
• Snap-action mechanism for rapid switching

Applications

• Control valves
• Waste treatment
• Conveyor belts

Can I use this limit switch in high-heat environments?

This limit switch has a wide operating temperature range of -25°C to +75°C, making it suitable for use in both hot and cold environments.

Approvals

II 2 G EEx d IIC T6

Machine Guarding and Safety Range Overview

Honeywell Limit Switch Comparison

Guide to Hazardous Location Approvals

Datasheet

Installation Instructions
