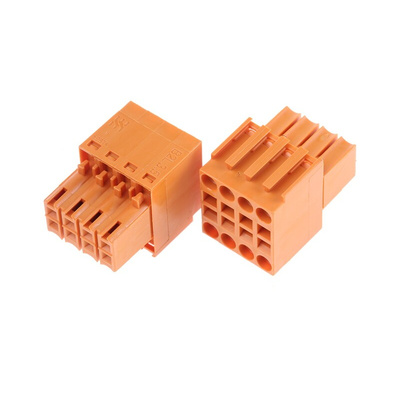

1727570000, Weidmuller 3.5mm Pitch 8 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Double Density 2-Part PCB Connector, screwless

The Weidmüller B2L/S2L is a two part PCB connector, offering double density in standard 3.5mm pitch. Saves 30% space compared to connectors using 2.5mm or 2.54mm pitch

No special tooling required
Easy handling compared to 2.5 & 2.54 pitches
Highest available wiring density for single wires

3.5mm Pitch - Weidmüller Omnimate Range

The Weidmuller 3.50 mm pitch Omnimate Range is a cost effective, space saving solution for PCB applications with vertical or horizontal headers which solder directly onto the board.

Mating harness connectors in either tension clamp or rising clamp screw terminals
Headers with fully enclosed sides
Polarising pins available to prevent mismatch connections
Flammability Class UL94 V-0

8 way PCB mount socket block,3.5mm pitch Data Sheet
