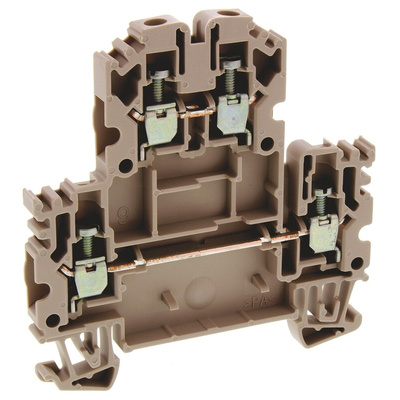

1041600000, Weidmuller WDK Series Brown Double Level Terminal Block, 2.5mm², Double-Level, Screw Termination, ATEX

Weidmuller Double-Level Terminal Block, 24A Current Rating, 11g Weight - W Series - 1041600000

For a safe link between cables and appliances on your DIN rail, choose this double-level terminal block from Weidmuller. Its two-tier design means that it has two clamping points, so you can connect multiple devices simultaneously. This keeps your wiring tidy for a neat setup. As it mounts directly onto a DIN rail, you don't need any tools to install it. The unit handles high power surges like a champ, thanks to its rated impulse withstand voltage of 8kV.

Features & Benefits

• Flame-retardant for safety in the event of a fire
• Compact dimensions of 61 (H) x 5.1 (W) x 62mm (D) to maximise space on your rail
• Wemid housing offers durability and resistance to impact, making it fit for harsh environments
• Current rating of 28A for use in medium-duty applications
• Accommodates wire sizes between 30 and 12AWG for versatility

Applications

• Switchgear control systems
• Domestic distribution boards
• Industrial lighting systems

Why does this terminal block have an open side panel?

This unit's open side panel is designed to allow for quick and simple inspection and maintenance, as well as ease of integration with other terminal blocks on the network.

Approvals

VDE

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
