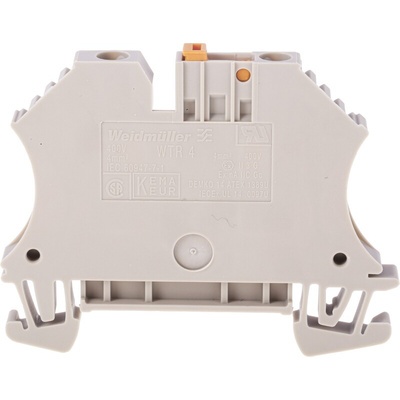

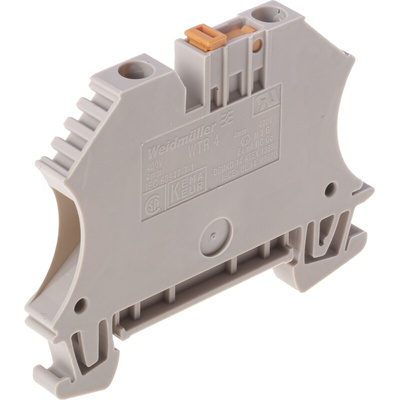

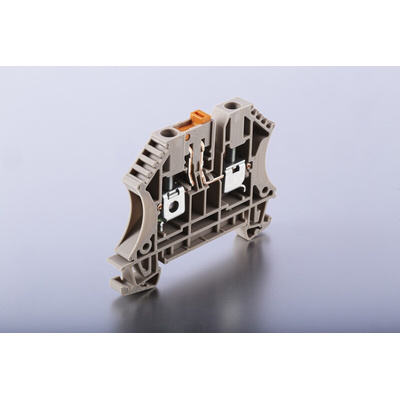

7910180000, Weidmuller WTR Series Brown Disconnect Terminal Block, 4mm², Single-Level, Screw Termination

Weidmuller Disconnect Terminal Block, 32A Current Rating, Screw Connection Type - W Series - 7910180000

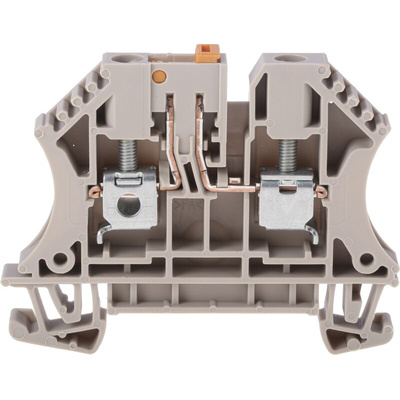

Safely spot-check your circuits with this disconnect terminal block from Weidmuller. Simply flip the orange lever to securely disconnect your circuit and carry out current tests. Screw terminals keep your wires clamped securely in place, while the tinned copper contacts are highly conductive and corrosion-resistant for a connection you can rely on. Thanks to the terminal's standard profile and a slot in the top, you have the option to use jumpers (829-8794). This means it's easy as can be to bridge multiple blocks. A current rating of 32A means this block can handle high-power industrial circuits.

Features & Benefits

• Wide operating temperature range between -50°C and +120°C for use in harsh conditions
• Snaps into place on a DIN rail for speedy installation
• Accepts wire sizes between 22 and 10AWG for versatility

Applications

• Engineering plants
• Industrial automation
• Oil and gas rigs
• Wood mills

How durable is this disconnect terminal block?

As its housing is made of Wemid, this disconnect terminal block is resistant to impact and wear. It's also flame-retardant for safety in the event of a fire.

Approvals

VDE

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
