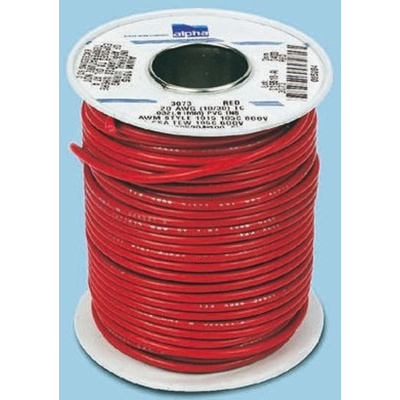

Alpha Wire Red 2.1 mm² Hook Up Wire, 14 AWG, 41/0.25 mm, 30m, PVC Insulation

Alpha Wire 600 V PVC Hook Up Wire

When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 600 V PVC hook up wire can be used in temperatures ranging from -20°C to +105°C depending on the application.

Features and Benefits

Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments

Colour-coded insulation for easy circuit identification

Easy to handle, strip and terminate

PVC insulation

Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

Product Applications

Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.

Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

Standards

UL AWM 1015, 1028, 1230, 1231, 1232, 1283, 1284, UL MTW (22 to 1/0 AWG), UL THW (6 to 1/0 AWG), CSA AWM I A/B FT1 and TEW 105, UL VW-1

Belden Alpha Wire Red Hook-Up Wire, 14AWG - Premium Series - 3079

Need a solution for connecting up your electrical devices? Try this hook-up wire from Belden's Alpha Wire range. You can use it for internal wiring in low-voltage electronic equipment like microphones and domestic appliances. As the wire is colour-coded red, you'll find it easy to identify when installing. It's also flame-retardant for safety so won't contribute to the spread of flames in the event of a fire. A PVC jacket offers insulation to protect you against potential shocks from live wires.

Features & Benefits

• Bend radius of 5 times the cable diameter means it's practical for installing around corners
• Wide operating temperature range of -20°C to +105°C for use harsh environments
• Tinned copper conductors resist corrosion for longevity in humid settings

Applications

• Industrial circuit boards
• Automotive manufacturing
• Residential and commercial lighting

Can I crimp this hook-up wire?

Yes, you can crimp this hook-up wire for a good grip on your conductors and insulation.

3070/3080 Series HOOK-UP WIRE Data Sheet
