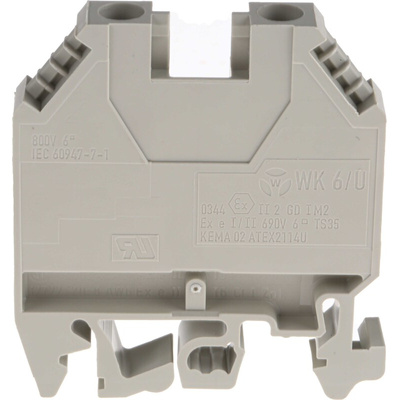

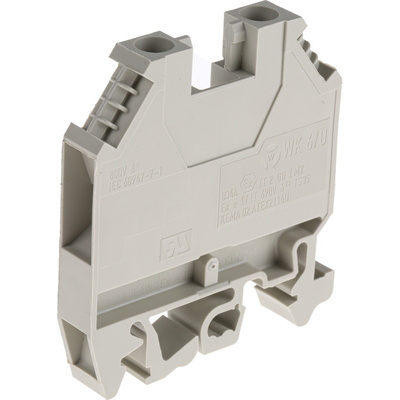

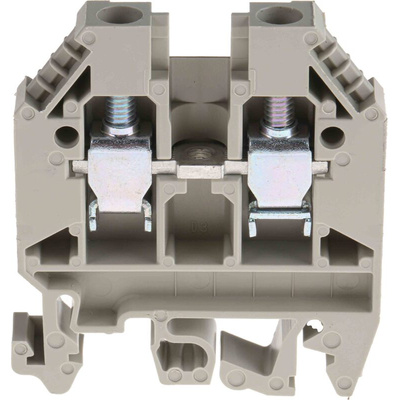

RS PRO Grey Feed Through Terminal Block, 6mm², Single-Level, Screw Termination

RS PRO, 1 kV Feed Through Terminal Block, Screw Termination

If you're working with high levels of power, this easy-to-use RS PRO feed through terminal block has an extremely high voltage rating of 1 kV. You can use it to connect wires together quickly, without the need for wiring or soldering.

The feed-through terminal block is designed to limit the exposure of wires, contributing further to its safety and reliability for circuitry. It can be mounted on a DIN rail and secured with a simple screw termination system, which is particularly suitable for semi-permanent applications. The block also enables you to clearly organise circuits and to easily isolate individual components.

The terminal block has been extensively tested to meet RS PRO standards. It also has an international UL94-V0 fire safety certification and is VBG4 certified for finger safety. Its high power rating makes it suitable for use in electrical power units, as well as semiconductor manufacturing equipment.

Features and Benefits

• Grey feed-through terminal block
• Dimensions of 48 mm x 8 mm
• Wire size of 22 AWG to 8 AWG
• 6 mm² cable CSA
• Current rating of 41 A
• Voltage rating of 1 kV
• Single level
• Screw termination

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
