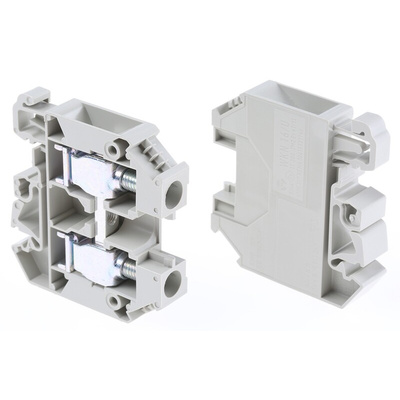

RS PRO Grey Feed Through Terminal Block, 16mm², Single-Level, Screw Termination

RS PRO Grey Feed Through Terminal Block, 12 to 4 AWG, 16 mm², 1 kV

Protect your electrical system from overcurrent and short-circuiting with this feed-through terminal block from RS PRO. It's typically found in commercial settings, including electronics production lines, telecommunications exchanges and IT labs.
The grey component can be mounted onto a standard DIN rail in seconds for a fuss-free installation – and as it simply clips on, you don't need extra components to install it. This high-current terminal is made from thermoplastic to ensure it's well insulated and protected from electrical currents and heat, for a longer product life.
For safety in the event of a fire, the reliable component has an Underwriters Laboratories flammability rating of UL 94-V0, which means it burns vertically and will extinguish within ten seconds with no dripping flames. It works with cable sizes ranging from 6 to 35 mm² or 12 to 4 AWG (American Wire Gauge).

Features and Benefits

• Cross-sectional area (CSA) of 16 mm²
• Grey colour
• Current rating of 71 A
• Single level
• WKN (Wertpapierkennnummer) series, or German securities identification number
• Screw termination method
• Voltage rating of 1 kV
• Wire size of 12 to 4 AWG (American Wire Gauge)

Approvals

UL; CSA

RS Pro Datasheet
