RS PRO 2-Way Earth Terminal Block, 10mm², 16 → 6 AWG Wire, Screw Down, Nylon Housing, Блок заземления

High Current Terminals

Fingerproof terminals (to VBG4 requirements)
Flammability rating UL 94-V0
Please note that none of the jumper bars shown in this range are suitable for use with this product
Cable sizes from 6 - 35mm²
Mounting method DIN rail (top hat rail)

Note

End covers (Stock Numbers 384-7054, 384-7060 and 384-7076) are required for the 6, 10 and 18mm² High Current Terminals (Stock Numbers 384-6972, 384-6988 and 384-6994 respectively)

Approvals

UL, CSA

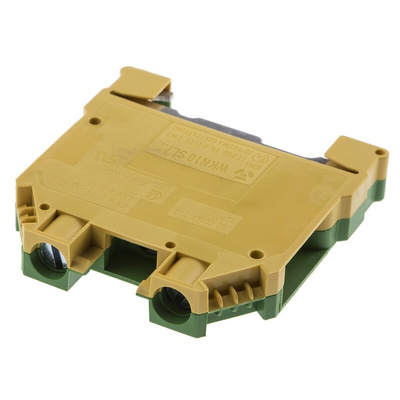

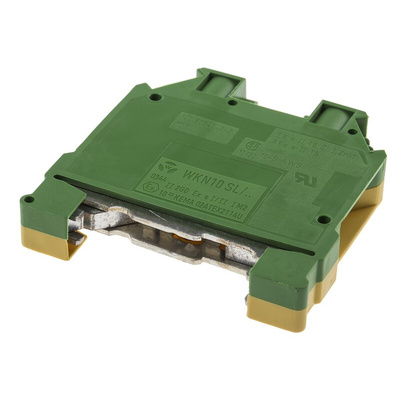

RS PRO 2-Way Earth Terminal Block, Screw-Down, 16 to 6 AWG, 54 mm

Need a safe way to ground wires in a large electrical system? Use this earth terminal block from RS PRO. For safety, it's fused to protect your component in the event of overcurrent and features a built-in end plate, so no live parts are exposed.


The block body is made from nylon, so it's resistant to corrosion and vibration for a long product life. The bright green and yellow body is flame-retardant and makes the unit immediately identifiable as an earth component, further increasing workplace safety.


This earth block fits a wide range of wire sizes, from 16 to 6 American Wire Gauge (AWG). This means it's a versatile and flexible choice. It can handle the high current and voltage requirements of large-scale electrical wiring, so you can use it in commercial factories, telecommunications exchanges and IT labs.

Features and Benefits

• Cable cross-sectional area (CSA) of 10 mm²


• Green/yellow in colour


• Current rating of 57 A


• Dimensions of 54 (length) x 10 (width) x 62.5 mm (height)


• Nylon housing material


• Two-way


• Screw-down termination method


• Voltage rating of 800 V


• Wire size range of 16 to 6 American Wire Gauge (AWG)

Approvals

UL; CSA
