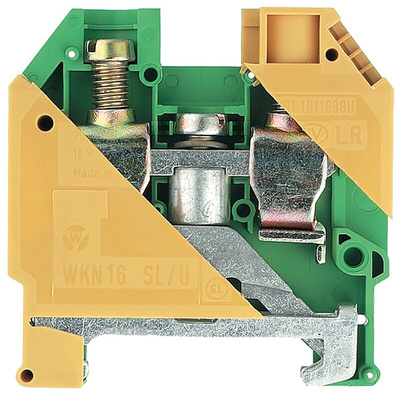

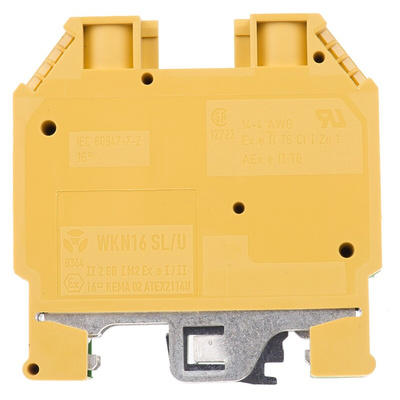

RS PRO 2-Way Earth Terminal Block, 16mm², 14 → 4 AWG Wire, Screw Down, Nylon Housing, Блок заземления

High Current Terminals

Fingerproof terminals (to VBG4 requirements)
Flammability rating UL 94-V0
Please note that none of the jumper bars shown in this range are suitable for use with this product
Cable sizes from 6 - 35mm²
Mounting method DIN rail (top hat rail)

Note

End covers (Stock Numbers 384-7054, 384-7060 and 384-7076) are required for the 6, 10 and 18mm² High Current Terminals (Stock Numbers 384-6972, 384-6988 and 384-6994 respectively)

Approvals

UL, CSA

RS PRO 2-Way Earth Terminal Block, Screw-Down, 14 to 4 AWG, 57.5 mm

If you need a versatile, space-saving ground termination for your electrical system that can handle high current and voltage, choose this earth terminal block from RS PRO. It fits American Wire Gauge (AWG) sizes ranging from 14 to 4, making it compatible with a range of applications.


This block is easy to install, as you can simply snap it onto a standard TS 35 DIN rail. The screw clamp termination locks connected wires in place so they won't come loose, even in the event of heavy vibration. This increases workplace safety and reduces maintenance requirements.


The block body is made from flame-retardant nylon, providing additional protection from fire hazards. The green and yellow colour makes the component instantly recognisable as an earth terminal, making safety inspections quick and easy.

Features and Benefits

• Cable cross-sectional area (CSA) of 16 mm²


• Green/yellow in colour


• Current rating of 76 A


• Dimensions of 57.5 (length) x 12 (width) x 65 mm (height)


• Nylon housing material


• Two-way


• Screw-down termination method


• Voltage rating of 800 V


• Wire size range of 14 to 4 American Wire Gauge (AWG)

Approvals

UL; CSA

RS Pro Datasheet
