T55C1800, Norgren T55 Non Return Valve G 1/8 Female Inlet, G 1/8 Female Outlet, 0.1 to 0bar, Клапан

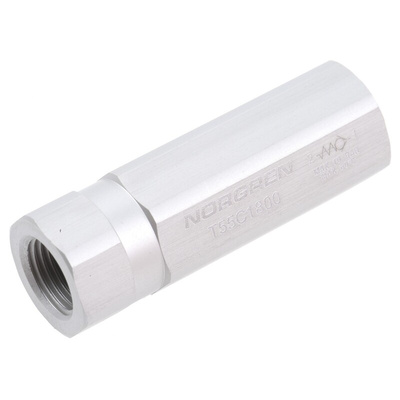

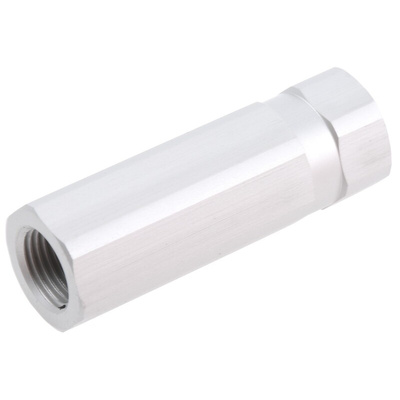

IMI Norgren Female Non-Return Valve, G1/8 Thread, 0.1 to 10 Bar Operating Pressure - T55 Series - T55C1800

This non-return valve from IMI Norgren maintains the flow of compressed air in one direction, preventing reversed flow in pneumatic systems. A low cracking pressure of 0.05 bar means you can rely on it to open quickly when it detects air. The unit's tough aluminium body is resistant to wear and corrosion so delivers long-term reliability. Its internal stainless steel spring mechanism is impact-resistant and can withstand heavy airflow. A broad operating temperature range between -20°C and +80°C makes this a suitable option for use in demanding environments.

Features & Benefits

• Operating pressure range between 0.1 and 10 bar for use in low-pressure systems
• Nitrile-butadiene rubber O-ring is resistant to common oils and solvents for durability

Applications

• Power plants
• Pharmaceutical industry
• Heating and cooling systems

Where should I mount this non-return valve?

Thanks to its in-line mounting design, you can insert this component directly into the air supply port of your pneumatic system. It features threaded G1/8 female ports on both its inlet and outlet sides for quick tool-free mounting.

Non-Return Valves T55/T56 Series - Product Data
