109.010.68, Werma Wall Mount Buzzer, 230 V ac, 80dB at 1 m, IP65, AC, Single-Tone, Зуммер

Electronic Sounder 109

Designed for industrial use
Protection to IP65
Sound output 80dB at 1m
Continuous or pulsating tone types

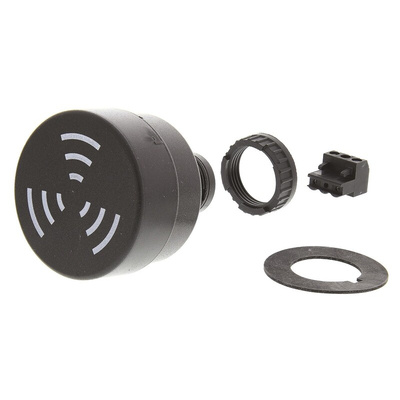

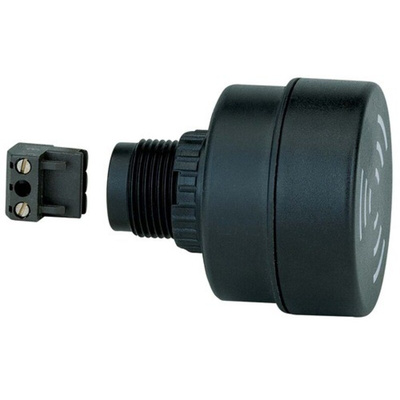

Supplied with screw terminal connector and sealing gasket
Vertical wall mounting bracket available separately
Housing material PC/ABS black

WERMA Pulse-Tone Buzzer, 230V AC, 80dB - 109.010.68

Create audible warning signals in your industrial environment using this pulse-tone buzzer from WERMA. It's made from a combination of polycarbonate and ABS materials, making it resistant to impact, corrosion and wear for durability in harsh environments. A maximum acoustic service life of 5,000 hours means it will last a long time without the need for frequent replacement. This buzzer has a loud sound output of 80dB at 1m, making it easy to hear in busy areas.

Features & Benefits

• IP65 (ingress protection) rating indicates it's dust tight and protected against low-pressure water jets
• Wide operating temperature range between -20°C and +50°C for use in demanding settings
• Light weight of 64g for reduced strain on your wall
• Screw terminals for a simple and secure electrical connection
• Compact dimensions of 52 (diameter) x 59mm (height) to reduce bulk in your setup

Applications

• Marine industry
• Aviation industry
• Storage facilities
• Office buildings

How do I connect this beacon to electricity?

This beacon features screw terminals, so you can quickly and easily connect it to an electrical cable without the need for specialised tools.

Buzzer

UL E164155

109 Installation Instructions
