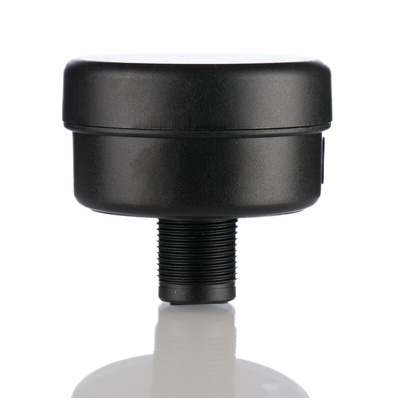

110.000.68, Werma Wall Mount Buzzer, 230 V ac, 100dB at 1 m, IP65, AC, 8-Tone, Зуммер

Multi-Tone Electronic Buzzer 110

Designed for industrial use
Protection to IP65
Sound output 100dB at 1m
Switchable 8 tones
Tone Frequency 1.6kHz to 3.4kHz
Sweep/pulse 1Hz to 420Hz
Volume control

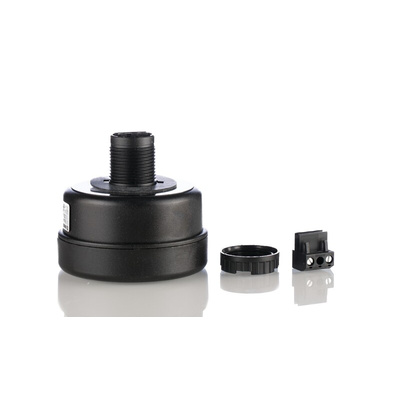

Supplied with screw terminal connector and sealing gasket
Vertical wall mounting bracket available separately
Housing material PC/ABS black
Front protrusion 39.6mm

Note

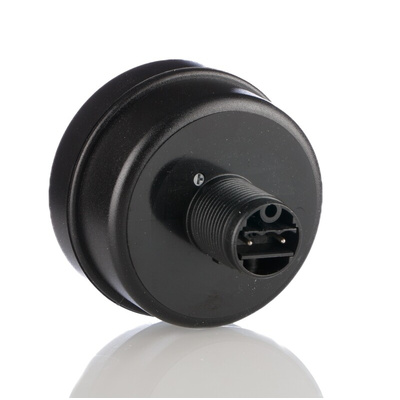

Tone setting and volume adjustment can only be achieved when unit is not fully installed. (Controls are mounted on the rear of the unit).

WERMA Multi-Tone Electronic Buzzer, 230V AC, 100dB - 110 Series - 110.000.68

Ensure the highest level of operational safety with this multi-tone buzzer from WERMA. It features a choice of eight different tones that vary in pitch and pulse length, so you can choose the setting that best suits your application. The buzzer has a loud maximum sound output of 100dB (decibels) so it's clearly heard, even in noisy working environments. Its low current consumption of 40mA makes the unit an energy-efficient choice. A strong plastic housing offers good protection against abrasion and knocks.

Features & Benefits

• IP65 (ingress protection) rating to keep the buzzer well-protected against dust and low-pressure water jets
• Easy-to-use connector plug for simple and quick installation
• Supplied with screw terminal connector and sealing gasket for convenient and fast assembly

Applications

• Industrial automation
• Automotive industry
• Oil and gas refineries
• Paper mills

Can you adjust the volume of this buzzer?

Yes, this buzzer has an adjustable volume, which lets you set it to the sound level you need. The volume controls are mounted on the rear of the unit, so you should set your sound output before completing your installation.

Approvals

UL; CE

UL E164155

Datasheet

Machine Guarding and Safety Range Overview

Datasheet - 110.000.68
