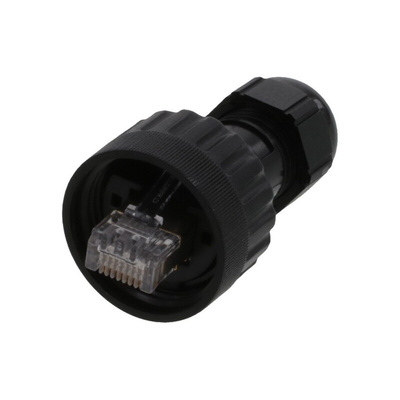

1300575001, Brad from Molex 13005 Series Male RJ45 Connector, Cable Mount, Cat5e, Разъем

Free Cable Plug

Cable mounting RJ45 shielded plug mates with sealed panel sockets to give an IP67 rated coupling
Accepts 24//26 AWG/0.5mm FTP/UTP datacomms cable with outer jacket diameter from 2.5mm to 6.5mm
Castellated grip coupling nut facilitates mating even with gloved hands
Easy assembly-just slide the body over cable, terminate the RJ45 plug as normal (use tool stock no. 443-895 and die set stock no. 443-968), test then bring body over the plug, lock on and tighten gland

Note

Test plug wiring and continuity before final body assembly

Brad from Molex Male Cat5e RJ45 Connector, Straight, 58.4mm Length - ENSAM315

Link network cables to your equipment for fast data transmission with this Brad from Molex RJ45 (registered jack) connector. Its polycarbonate (PC) body material resists impact and is an insulator, so it protects you from electric shocks. The contacts are made of conductive copper alloy material that ensures a strong and reliable connection. An ABS (acrylonitrile butadiene styrene) cable gland provides effective cable retention, preventing the line from falling out. This makes this connector suitable for use in industrial environments prone to heavy vibration.

• Compact dimensions of 58.4 (L) x 29mm (D) to fit into setups with limited space
• Broad operating temperature range of -20°C to +80°C for use in hot and cold environments
• Gold-over-nickel contact plating for corrosion resistance and long-lasting performance
• Light weight of 21.29g for easy handling

Applications

• Network and communication facilities
• Industrial production equipment

Can I use this connector in wet environments?

Thanks to its IP67 (ingress protection) rating, this connector can withstand dust and immersion in up to 1m of water for 30 minutes. This makes it suitable for use in wet or humid environments.

RJ-Lnxx Series Physical Media

RJ-Lnxx Field Attachable and Moulded Connectors

product drawing

Datasheet - ENSAM315
