1300515001, Brad from Molex 13005 Series Female RJ45 Connector, Panel Mount, Cat5e, Разъем

Molex RJ45 Panel Sockets

Molex’s range of adaptable and brilliant panel sockets are high quality RJ45 ports. They are all rated at an IP67 (dust-tight and waterproof) when mated or have a protection cap on. These RJ45 connectors are Female gender and are made from a high quality ABS to ensure for a great build quality. Operational temperatures -20° up to +80° so will fit all your needs. The ports are also shielded to protect from any unwanted interference.

These sockets would made great use in any situation that needs a dust tight or waterproof RJ45 connector. This could be cabling to any industrial enclosures, use for Datacom installers, extending the network capability between floors or where you need a tough RJ45 port.

Features and Benefits:

•IP67 rated (with protection cap) makes for tough use
•Made from high quality ABS
•Multiple types available for efficiency and any case scenario.
•1” – 14 UNC mounting thread
•Shielded port to stop any interference

Need a protection cap?
Check out: 385-4197

Other variants:
385-1356 & 446-3354 – RJ45, Direct PCB mount.
385-1362 – RJ45, With PCB and RJ45 port from the back.
385-1384 – RJ45 with mounted male RJ45 termination.
446-3360 – RJ45 with punch down receptacles (Punch down tool – 472-6740)

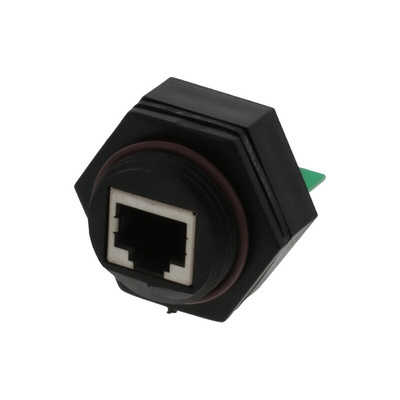

Brad from Molex Female Cat5e RJ45 Connector, Straight, 49.78mm Depth - ENSR1FB5

Enjoy speedy data transmission in your network and industrial equipment thanks to this Brad from Molex RJ45 (registered jack) connector. It's designed to mount directly onto your printed circuit board (PCB) to make a direct communication link. The unit's eight contacts are made of highly conductive copper alloy, so you can be sure of a reliable connection. Polycarbonate (PC) housing offers impact resistance and insulation to protect you from electrical hazards. You'll find this versatile component used in domestic, commercial and industrial environments.

• IP67 (ingress protection) rated (with protection cap) to withstand dust and immersion in up to 1m of water for 30 minutes
• Broad operating temperature range of -20° to +80°C for use in both hot and cold environments
• Light weight of 22.2g for easy handling
• Maximum current per contact of 1.5A for energy efficiency and low heat dissipation
• Transmission speed of 1000Mbps (megabits per second) for speedy data transfer

Applications

• Automotive industries
• Process and packaging equipment
• Factory automation

What's the voltage rating of this connector?

This connector has a voltage rating of 125V DC (direct current), which makes it a practical option for use in low-voltage applications.

RJ Lnxx Female Recptacles

RJ-Lnxx Series Physical Media

Line Drawing - ENSR1FB5

Datasheet - ENSR1FB5
