1300550013, Molex ENSP3F5 Series Female, Male RJ45 Connector, Panel Mount, F/UTP Shield, Разъем

Molex RJ45 Panel Sockets

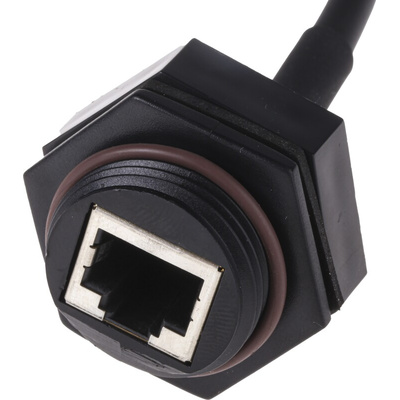

Molex’s range of adaptable and brilliant panel sockets are high quality RJ45 ports. They are all rated at an IP67 (dust-tight and waterproof) when mated or have a protection cap on. These RJ45 connectors are Female gender and are made from a high quality ABS to ensure for a great build quality. Operational temperatures -20° up to +80° so will fit all your needs. The ports are also shielded to protect from any unwanted interference.

These sockets would made great use in any situation that needs a dust tight or waterproof RJ45 connector. This could be cabling to any industrial enclosures, use for Datacom installers, extending the network capability between floors or where you need a tough RJ45 port.

Features and Benefits:

•IP67 rated (with protection cap) makes for tough use
•Made from high quality ABS
•Multiple types available for efficiency and any case scenario.
•1” – 14 UNC mounting thread
•Shielded port to stop any interference

Need a protection cap?
Check out: 385-4197

Other variants:
385-1356 & 446-3354 – RJ45, Direct PCB mount.
385-1362 – RJ45, With PCB and RJ45 port from the back.
385-1384 – RJ45 with mounted male RJ45 termination.
446-3360 – RJ45 with punch down receptacles (Punch down tool – 472-6740)

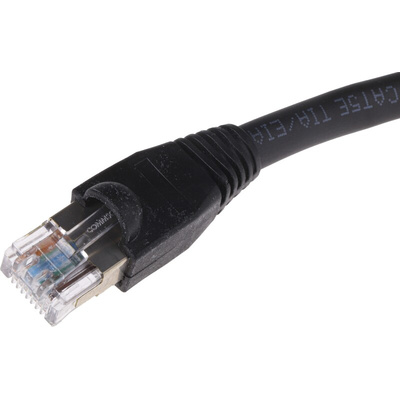

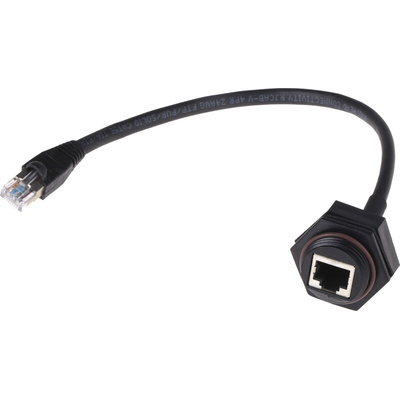

Brad from Molex RJ45 Connector, 8 Way, Straight - ENSP3F5 Series - ENSP3F5C305

Use this 8-way female-to-male RJ45 (Registered Jack) connector from Brad from Molex as part of your Ethernet setup. You can connect the cable directly without needing to strip or solder the conductor core, making it simple to use. The connector is shielded against electromagnetic interference (EMI) to ensure high-quality signal transmission. An IP67 (ingress protection) rating indicates it's completely dust-tight and water-resistant, making it suitable for use in harsh industrial environments.

Features & Benefits

• Durable acrylonitrile butadiene styrene (ABS) plastic material for resistance to wear
• Cat5e-compliant to support fast Ethernet speeds
• Short cable length of 305mm to prevent excess cabling for installation in tight spaces
• Broad operating temperature of -20°C to +80°C for use in harsh environments

Applications

• Networking and data communication
• Medical and pharmaceutical industries
• Industrial process control
• Security systems

Is this RJ45 connector simple to install?

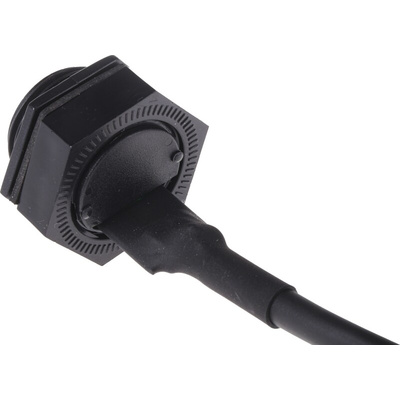

The receptacle comes with a hexagonal flange and a location key that lets you precisely position it on a device or panel. It also comes with a sealing gasket and lock nut for simple and secure installation.
