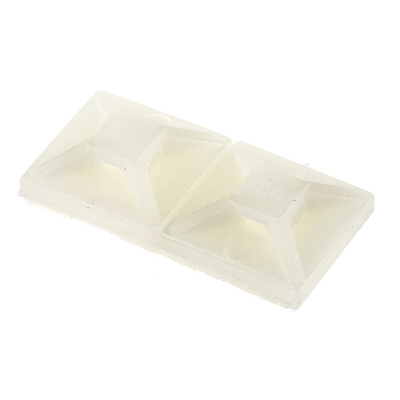

151-01802 MB2A-PA66-WH, HellermannTyton Self Adhesive Natural Cable Tie Mount 13 mm x 13mm, 2.7mm Max. Cable Tie Width

MB Self Adhesive Cable Tie Mounts

HellermannTyton self-adhesive cable tie mounts that provide a fast and simple way of securing cable ties. MB series mounting bases allow ties to be inserted from all 4 sides. Ideal for cable management for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws or nuts and bolts is impractical or undesirable.

Features and Benefits:
• Self adhesive
• Quick assembly in clean applications
• Allows 4 way entry for cable ties
• Ideal for use where panel access is limited or holes are undesirable
• Stabilise and secure wiring bundles
• Flame retardant (UL94 V2 rating without adhesive)
• Material: Nylon 66
• Provides secure fastening

The range includes the following cable tie mounts with various cable tie width acceptance, lengths x widths (mm) and colours:
131-0242 - Black 13 x 13
131-0243 - Black 19 x 19
131-0244 - White 19 x 19
131-0245 - Black 28 x 28
131-0246 - White 28 x 28
131-0247 - Black 38 x 38
131-0250 - Black 19 x 19
131-0251 - Black 28 x 28
131-0252 - Black 38 x 38
190-3326 – Natural 28 x 28
190-3354 - White 37.7 x 37.7
219-875 - Black 19 x 19
359-2063 - Natural 19 x 19
385-3885 - Natural 13 x 13
600-931 - Natural 19 x 19

Typical Applications
These cable tie mounts are suitable for the following markets and industries:
Rail Transportation
Electronics Industry
Aerospace Industry
Shipbuilding
Defence Industry

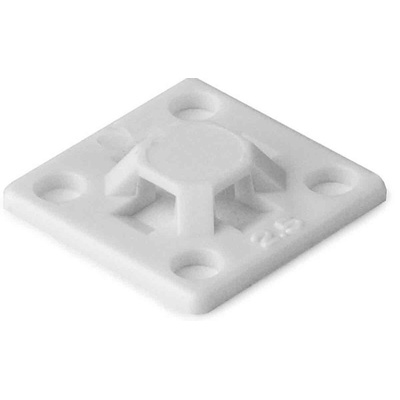

HellermannTyton Cable Tie Mount, 13 (L) x 13mm (W), Synthetic Rubber Adhesive, Screw Holes - MB Series - 151-01802 MB2A-PA66-WH

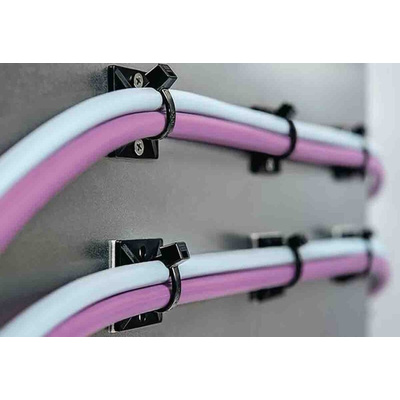

Don't let wires trip you up in your workplace – bundle them neatly up with this cable tie mount from HellermanTyton. It allows you to secure cord bunches to a wall or your panel, keeping them organised and safe from damage. Thanks to pre-cut holes, you can fasten it to surfaces using screws. It's also got you covered on platforms where drilling isn't an option as it comes with a strong rubber adhesive that maximises surface contact and sticks firmly.

Features & Benefits

• Works without a hitch in a wide operating temperature range between -40°C and +60°C
• Small dimensions of 13 (L) x 13mm (W) for use in space-tight areas
• 4-way cable entry for versatility

Applications

• Aerospace industry
• Machine building
• Military equipment

Is this mount flame-resistant?

Yes, it stops burning in 60 seconds or less if there's a fire, minimising the risk of flames spreading.

151-01802 MB2A-PA66-WH (100) Datasheet

Line Drawing - 151-01802 MB2A-PA66-WH
