XU2S18PP340L5, Telemecanique Sensors XU2S Series Preventa Light Beam Sender & Receiver, 1 Beam(s), 8m Max Range, Датчик

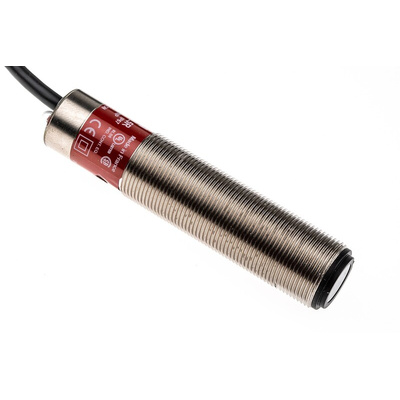

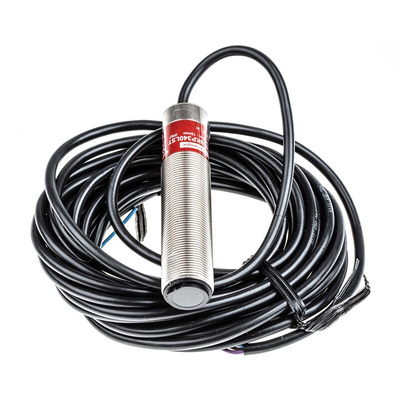

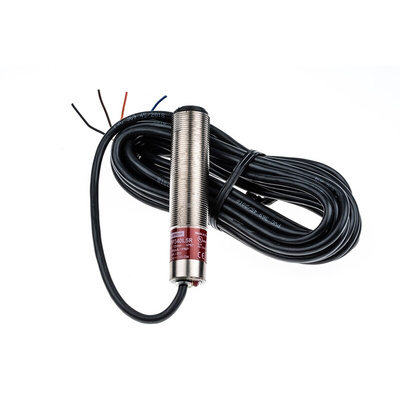

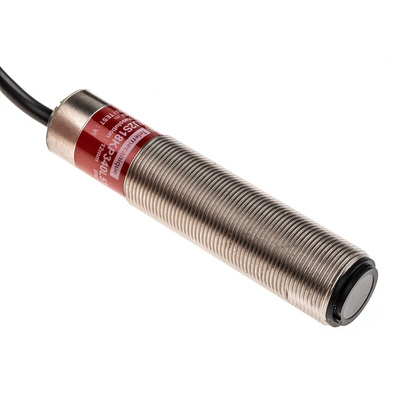

Telemecanique Sensors Single Light Beam

The Telemecanique sensors XU2S series single light beam is a safety thru-beam pair photo-electric sensors device, constitutes a type 2 safety light curtain conforming.
It has a maximum scanning distance range of 8m.
Note:
This product is supplied with a full installation instruction manual, which should be strictly adhered to. Particular attention should be given to section 3.5 (installation positioning and electrical inter-phasing).

Features and Benefits

Flexibility allows connection of up to 4 light beam devices which can protect a zone up to 1200mm high
Automatic self-checking every 5ms
Built-in muting function allows the light device to be inhibited by an external sensor
Single beam sensors (for muting function) available separately
Ideal for transfer line applications
Solid-state auxiliary output (from the module) PNP 20mA/24Vdc
2 N/O safety outputs

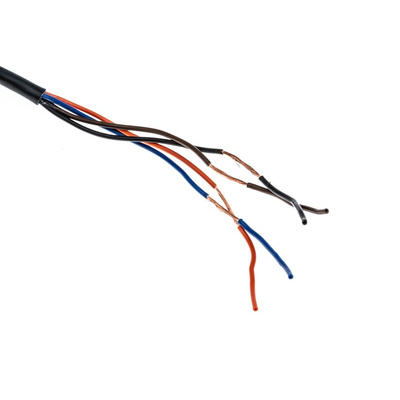

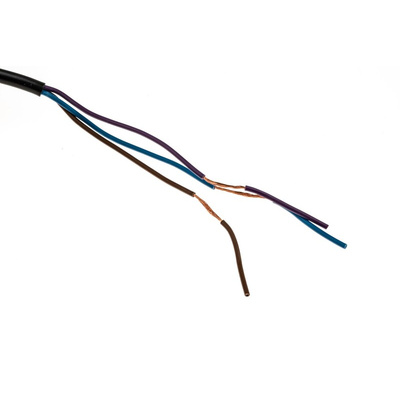

Cable length is 5m

Applications

Machine safeguarding
Mining and Quarrying
Factory automation industry
Pharmaceutical industry
Rail and transport

Certifications

IP67 rated
CE certified
EN/IEC 60825-1
EN/IEC 61496-1
EN/IEC 61496-2
EN/ISO 13849-1
IEC 61496-1-2
IEC 61508
EN/IEC 60068-2-27
EN/IEC 60068-2-6
