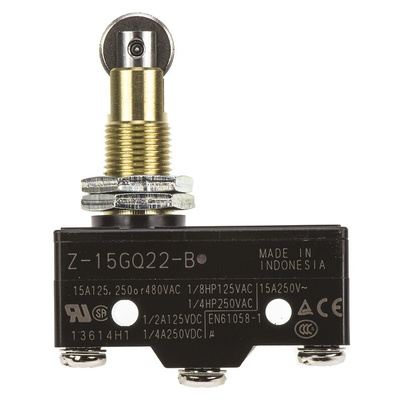

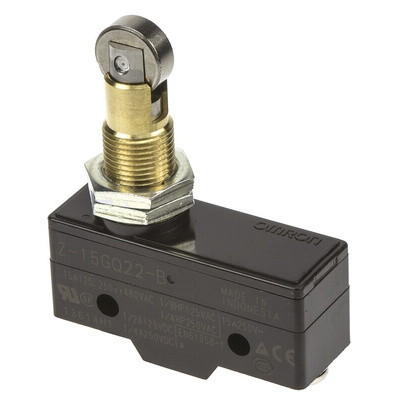

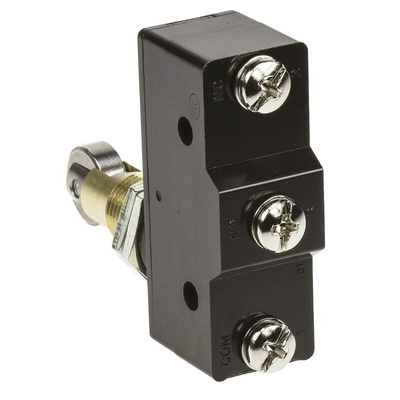

Z-15GQ22B, Omron Z Series Plunger Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max

Z15 Series – Basic Switch

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

Approvals

UL recognised, CSA

OMRON Limit Switch, Snap Action Type, 250V DC Voltage Maximum - Z Series - Z-15GQ22B

Get the precise machine control you need with this limit switch from OMRON. You can use it in applications where you want to make or break a circuit when a piece of equipment or an object reaches a specific point, such as on conveyor belts or machine tools. The switch has a plunger actuator that opens or closes the circuit when an object or mechanism presses it with 250 to 350g of force. This makes it highly accurate and means that you need less force to activate it than some other switch types, such as roller limits.

Features & Benefits

• Snap action mechanism opens contacts immediately regardless of force or speed
• Maximum voltage rating of 500V AC / 250V DC, so suits high-power applications
• Handles harsh settings with an operating temperature range between -25°C and +80°C

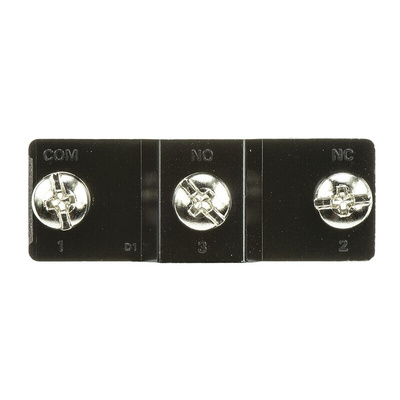

• SPDT configuration can be used to turn a single circuit on or off, or to switch between two circuits

Applications

• Packaging plants
• Distribution centres
• Engineering workshops

How long will this limit switch last?

It has a mechanical life of an estimated 10 million cycles, so you can count on it for the long haul.

Approvals

UL recognised, CSA

Datasheet

Z-Series Basic Switches Datasheet
