Z-15GQ-B, Omron Z Series Plunger Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max

Z15 Series – Basic Switch

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

Approvals

UL recognised, CSA

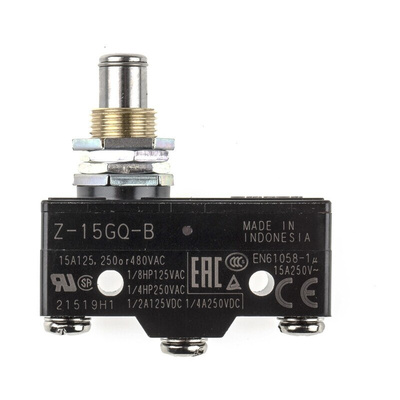

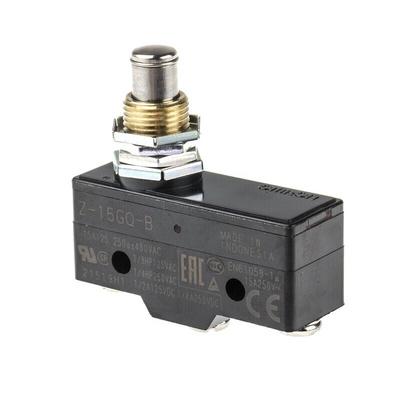

OMRON Limit Switch, Screw Terminal, 8.35mm Plunger Diameter - Z Series - Z-15GQB

When precise control of your system is non-negotiable, reach for this OMRON limit switch. It boosts safety and efficiency by stopping or starting equipment when its plunger actuator detects forces between 2.45 and 3.43N. Lock nuts allow you to adjust the plunger's height quickly when setting up your system. A 0.5mm contact gap reduces the risk of arcing to prevent damage to your equipment. Thanks to this limit switch's mechanical lifespan of 20 million operations, you can rest assured it delivers reliable performance over the long term.

Features & Benefits

• Silver contacts ensure efficient electrical conductivity and resistance to corrosion
• Functions without a glitch in an operating temperature range from -25°C to +80°C
• Insulated to handle 1000V AC at 50/60Hz for one minute, limiting electrical breakdowns during a power surge
• Maximum contact resistance of 15mΩ minimizes power loss and voltage drops

Applications

• Robotic arms
• CNC machines
• Printing presses

How do I mount this switch?

The product has two mounting holes for installation on a panel or enclosure, making integration into your industrial control system a piece of cake.

Approvals

UL recognised, CSA

Datasheet

Z-Series Basic Switches Datasheet
