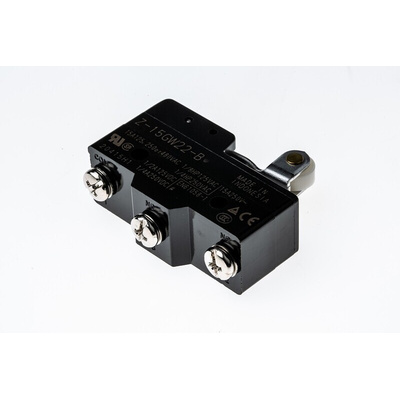

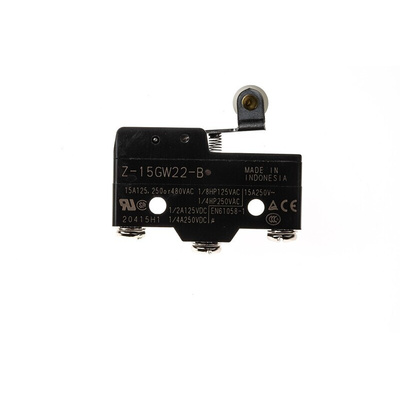

Z-15GW22-B, Omron Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max

Z15 Series – Basic Switch

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

Approvals

UL recognised, CSA

OMRON Limit Switch, Snap Action Type, 250V DC Maximum Voltage - Z Series - Z-15GW22B

Need to keep a beady eye on your automated operation? This limit switch from OMRON has monitoring and control covered. It has a roller actuator that activates or deactivates the circuit when it's triggered by a force of 160g, keeping your application moving or shutting it off in the event of a malfunction. The unit has silver contacts that resist corrosion to deliver long-term performance in challenging industrial settings. As this snap-action switch moves back into position automatically, there's no need to reset it manually.

Features & Benefits

• Gets on with the job reliably in an operating temperature range between -25°C and +80°C
• Mechanical life of 10 million cycles for long-lasting reliability and accurate repeatability
• 0.5mm contact gap protects against arcing to enhance safety and limit potential damage to equipment

Applications

• Conveyor systems
• Aerospace industry
• Food production
• Packaging plants

Is this limit switch protected against surges?

Yes. The switch is insulated to withstand a voltage of 1000V AC at a frequency of 50/60Hz for one minute, minimising the risk of electrical breakdown.

Approvals

UL recognised, CSA

Z-Series Basic Switches Datasheet
