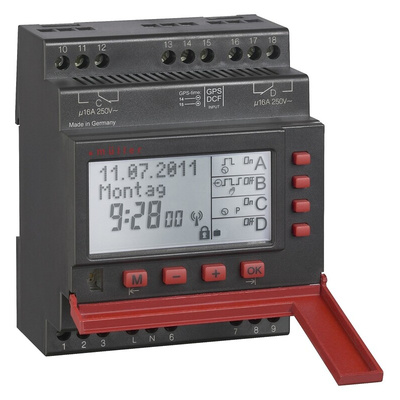

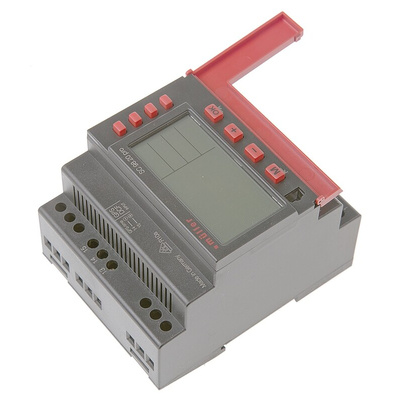

SC 98.20 pro, Muller 2 Channel Digital DIN Rail Time Switch Measures Minutes, 230 V ac

Yearly - SC98

Daily, weekly or yearly programming
Can be programmed with supply disconnected
Permanent On/Off switch, manual override, holiday switching
Pulse function and segment length of 1 min (1 sec pulse)
71.5mm wide

Muller Time switch

The Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 24VDC coil and an SPNO contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

• DIN rail mounting
• Minimum interval 1 minute
• Time base is quartz/DCF
• Switching capacity 16A per channel
• Manual permanent mode
• Manual override
• Can be programmed with supply disconnected
• Permanent ON/OFF switch, manual override, and holiday switching
• Automatic sorting of switching times on readout
• Unrestricted block programming
• Fully automatic daylight saving time
• Elapsed time and pulse counter
• Security by PIN-code
• Data key function
• Screw terminal connection
• Operating temperatures ranging between -30°C and 55°C

Applications

• Ideal for outdoor and street lighting
• Control of lighting, heating and ventilation

Certifications

• IP20 rated
• DIN EN 6052
• VDE approved

Remotely Programmable

SC98 Programming Manual

Datasheet
