RS PRO, 28 Blades Thread Pitch Gauge, Imperial/Metric thread type, Резьбомер

RS PRO 28 Blades Thread Pitch Gauge, Imperial/Metric thread type

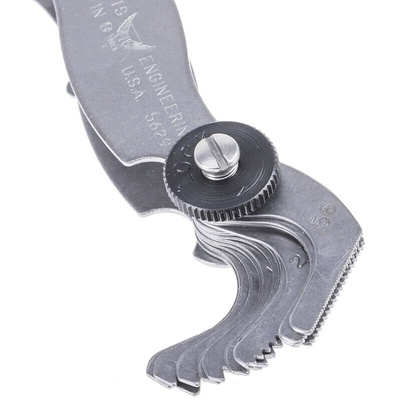

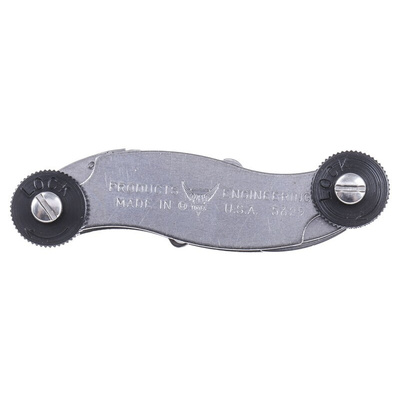

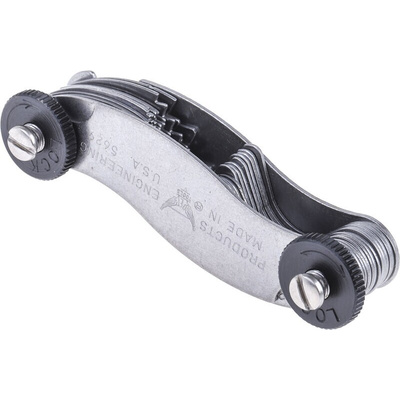

This thread pitch gauge from RS PRO lets you measure the threading on a screw in both metric and imperial units. With 28 blades and a compact penknife construction, it's a versatile and handy option for measuring thread pitch.

The gauge lets you quickly measure internal and external threading by simply matching the blade teeth with the threading of a component. It has a locking device at each end to secure all blades, which makes it easier to position the blades while measuring. It also keeps the blades safely stowed when not in use. Each blade is clearly marked, and the gauge can measure within a range of 0.5 mm (4 threads per inch) to 6 mm (56 threads per inch).

You'll find this thread pitch gauge in use in manufacturing and maintenance situations. It's commonly used in engineering to check components while cutting threads with a lathe.

Features and Benefits

• Thread pitch gauge
• Imperial and metric units
• Penknife style with locking device
• 28 blades
• Thread angle of 60° (metric) and 60° (imperial)
• Minimum measurement of 0.5 mm (4 threads per inch)
• Maximum metric measurement of 6 mm (56 threads per inch)
