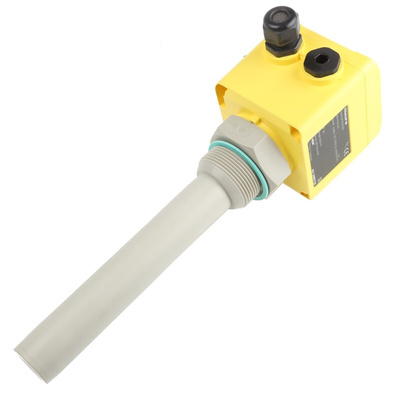

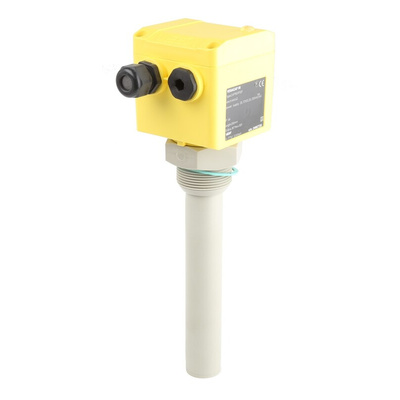

CAP98XPXD, Vega VEGACAP 98 Series Capacitance Level Switch, Relay Output, Horizontal, Vertical, Polypropylene Body

Vega Capacitive Level Switch

The Vega capacitive level switch has a relay (DPDT) output with a measuring range of up to 2m. It is an adjustment-free and affordable level switch for liquids and bulk solids. It is particularly suitable as overfill protection or dry running protection system in adhesive, conductive products.

Features and Benefits

The supply voltage ranging from 20VAC to 250VAC and 20VDC to 72VDC
Process fitting: thread from G1, 1 NPT

Minimum time and cost expenditure simple setup without a medium
Exact switching point even with strong build-up
Long lifetime and low maintenance due to robust mechanical construction
Operating temperature ranges between -40°C and 80°C
Process pressure: unpressurized operation
Vertical or horizontal mount
A/B detection modes, A
max. detection or overfill protection, B. min. detection or protection against dry running of pumps
LED for indication of switching mode
Integration time 0.5 seconds
Adjustment free
Polypropylene probe
Thread size is 1in BSP
Cable entry 1 x PG 13.5
Mounting kit is available separately. Consists of a 2mm stainless steel angle bracket (D150x H200 x W150mm) and polypropylene locknut

Applications

Used for detection of maximum and minimum levels in vessels
Suitable for use with liquids, light solids and adhesive materials

Certifications

IP66 rated

VEGACAP - Operating Instructions

Datasheet
