1119203, Lapp ÖLFLEX Control Cable, 3 Cores, 1 mm², Unscreened, 50m, Grey PVC Sheath, 17 AWG, Кабель

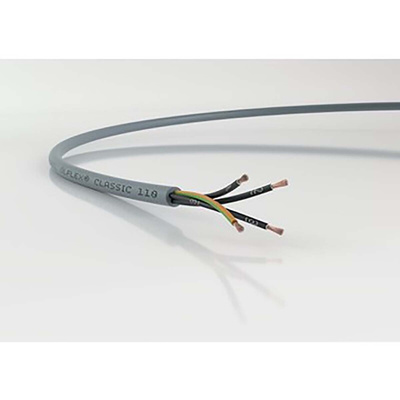

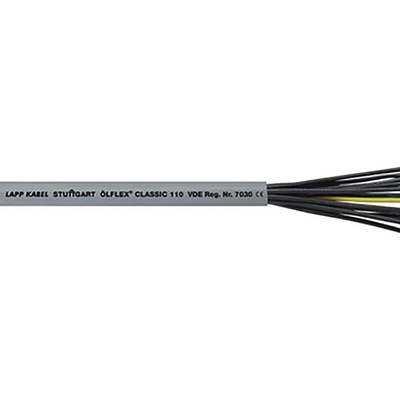

Ölflex® Classic 110 YY Cable

From Lapp, the Olflex Classic 110 YY Cable is a robust cable designed for use under medium mechanical stresses, such as power chain applications. The cable is suitable for fixed installation purposes, as well as those that require occasional flexing and movement.

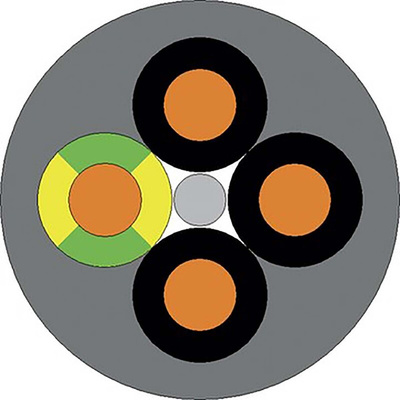

This YY control cable consists of fine wire copper strands, with a special PVC conductor insulation and sheathing that is suitable for use in both dry and humid conditions. The cable also has a good resistance to chemicals and oils, making it ideal for challenging industrial environments.

YY cable is an excellent control cable solution for a variety of applications.

Features and Benefits

• Flame-retardant according to IEC 60332-1-2
• Oil-resistant according to DIN EN 50290-2-22 (TM54)
• Chemical resistance at room temperature
• Suitable for dry and humid applications
• Resistant to bending

Applications

Lapp Olflex Classic 110 YY cable is suitable for a wide range of uses, and is often used in control and measurement applications. It is suitable for some torsional applications, and as such is can be found in wind turbine generators. This unscreened YY cable has a robust and reliable nature makes it ideal for;

• Machine Tools
• Plant engineering
• Refrigeration plant sectors
• Construction Industries
• Transport
• Smart Homes

Accessories

Lapp cables should be used alongside accessories that match their capabilities. Lapp provides a variety of reliable and easy-to-fit cable glands, such as the Skintop Click series.

• 560-678 is an M12 IP68 Skintop Click Cable Gland
• 475-091 is an M16 IP68 Skintop Click Cable Gland
• 475-136 is an M20 IP68 Skintop Click Cable Gland
• 475-132 is an M25 IP68 Skintop Click Cable Gland
• 560-688 is an M32 IP68 Skintop Click Cable Gland

Standards

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Grey Control Cable, 100m Length, 3 Cores - ÖLFLEX Series - 1119203

Reliably deliver instructions to your equipment with this YY control cable from LAPP. Its three stranded copper conductor cores combine efficient data transmission with the flexibility needed for easy installation in compact spaces. A non-wicking filler material protects the electrical connection from moisture to support reliable performance. As the cable's resilient PVC sheath is flame-retardant and oil-resistant, it's safe for use in hazardous conditions.

Features & Benefits

• Numbered conductor cores make identifying electrical connections simple even in busy control cabinets
• Operates between -40°C and +80°C for secure data transfer in demanding environments
• Versatile 300/500V voltage rating serves commercial and light-industrial applications
• 100m length provides sufficient cable for multiple jobs

Applications

• Automated production lines
• Packaging and logistics industries
• IT and server management

What's meant by a non-wicking filler material?

Wicking refers to a material's ability to draw in moisture. In wiring, a non-wicking filler material is desirable as it isn't absorbent. Instead, it repels moisture away from the metal conductor cores and reduces the risk of disruption and damage to electrical connections.

Standards

VDE 0295, Part 5
