1119112, Lapp ÖLFLEX CLASSIC 110 YY Control Cable, 12 Cores, 0.75 mm², YY, Unscreened, 50m, Grey PVC Sheath, 18 AWG, Кабель

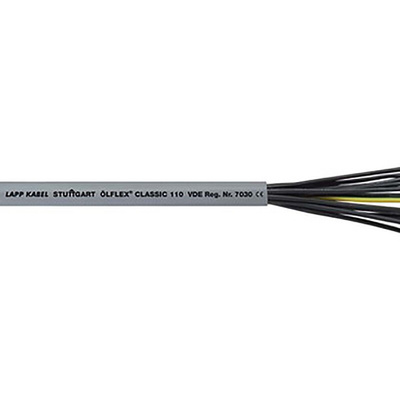

Ölflex® Classic 110 YY Cable

From Lapp, the Olflex Classic 110 YY Cable is a robust cable designed for use under medium mechanical stresses, such as power chain applications. The cable is suitable for fixed installation purposes, as well as those that require occasional flexing and movement.

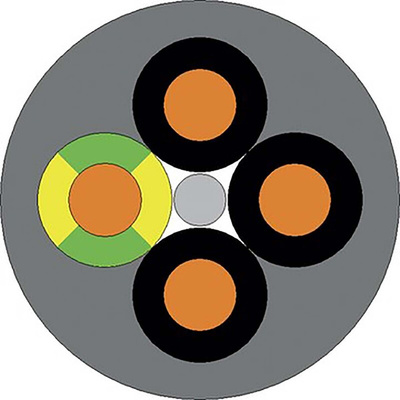

This YY control cable consists of fine wire copper strands, with a special PVC conductor insulation and sheathing that is suitable for use in both dry and humid conditions. The cable also has a good resistance to chemicals and oils, making it ideal for challenging industrial environments.

YY cable is an excellent control cable solution for a variety of applications.

Features and Benefits

• Flame-retardant according to IEC 60332-1-2
• Oil-resistant according to DIN EN 50290-2-22 (TM54)
• Chemical resistance at room temperature
• Suitable for dry and humid applications
• Resistant to bending

Applications

Lapp Olflex Classic 110 YY cable is suitable for a wide range of uses, and is often used in control and measurement applications. It is suitable for some torsional applications, and as such is can be found in wind turbine generators. This unscreened YY cable has a robust and reliable nature makes it ideal for;

• Machine Tools
• Plant engineering
• Refrigeration plant sectors
• Construction Industries
• Transport
• Smart Homes

Accessories

Lapp cables should be used alongside accessories that match their capabilities. Lapp provides a variety of reliable and easy-to-fit cable glands, such as the Skintop Click series.

• 560-678 is an M12 IP68 Skintop Click Cable Gland
• 475-091 is an M16 IP68 Skintop Click Cable Gland
• 475-136 is an M20 IP68 Skintop Click Cable Gland
• 475-132 is an M25 IP68 Skintop Click Cable Gland
• 560-688 is an M32 IP68 Skintop Click Cable Gland

Standards

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Control Cable, 18AWG, 50m Length - ÖLFLEX CLASSIC 110 Series - 1119112

Use this flexible cable from LAPP to connect sensors and actuators to control units on your industrial equipment. It has two unterminated ends, giving you the freedom to choose a connector to suit your design specifications. A length of 50 metres means you'll have an ample supply to cut and use for multiple jobs. As this is a YY cable, both its outer sheath and insulation are made of polyvinyl chloride (PVC) material. This material provides impact and abrasion resistance and also protects you from electric shocks.

Features & Benefits

• Non-wicking filler material to resist oils, moisture and some chemicals
• Integrated earth cable to carry excess current to the ground for electrical safety
• Minimum bending radius of 15 times its outer diameter for flexibility to allow for installation around corners
• Wide operating temperature range of -40°C to +80°C for use in demanding conditions

Applications

• Robotics and automation
• Process and packaging machinery
• Material handling equipment

What's the conductor resistance of this cable?

This cable has a low conductor resistance of 26Ω/km for increased efficiency and minimal energy loss to heat.

Standards

VDE 0295, Part 5
