1591301, Lapp 4 Core 23 AWG JY (ST) Y Telephone Cable, Grey Sheath, 100m, Кабель

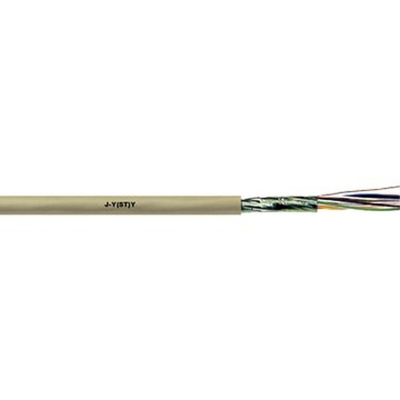

LAPP Indoor Telephone Installation Cable

This indoor telephone cable from Lapp can transmit both analogue and digital signals. It benefits from an aluminium-laminated plastic foil static screen with tinned plated drain wire which helps to minimise interference from electromagnetic fields.

Features and Benefits

Solid bare copper conductor
PVC core insulation
PVC outer sheath
Flame retardant according to IEC 60332-1-2

Product Application Information

This connection cable has been designed for use in electronics, measurement, control and signal applications.
In news and communication applications, the following connections can be installed: telephone, telefax, telex, standard modems for postal services; burglar and fire alarm systems (cf. fire alarm cables); communication and paging systems; access control, time and data control systems.
They can be used in dry and wet interiors for fixed installation on and under plaster.

Standards

Flame retardant in accordance with VDE 0472 Part 804

1591301

0.6 mm copper conductor
2 double cores
5.5 mm outer diameter
13 kg/km copper index
40 kg/km weight
