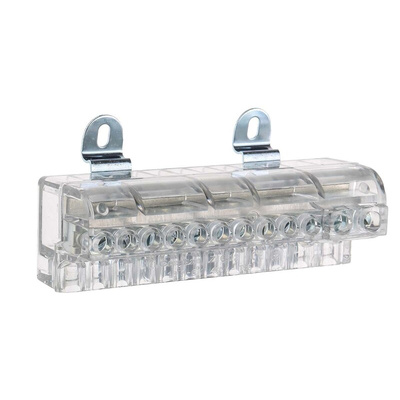

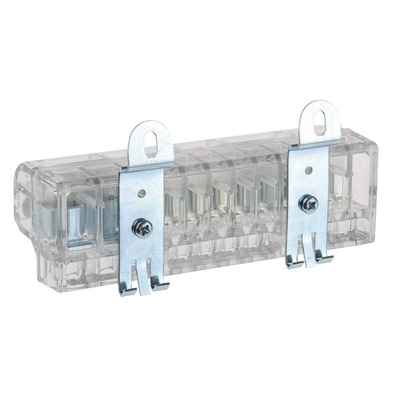

RS PRO Clear DIN Rail Terminal Block, 16mm², Single-Level, Screw Termination

RS PRO, 450 V Din Rail Terminal, Screw Termination

This RS PRO DIN (Deutsches Institut für Normung) rail terminal will protect your electrical system from overcurrent and short-circuiting. Designed to connect cables with the same potential, the terminal is a practical way to insulate your signal.

The 12-way terminal is linked inside by a copper busbar, which gives your electrical connection minimal resistance. The part has a voltage rating of 450 V and a current rating of 100 A for your signal. This model is designed for wire sizes of 10 to 5 AWG (American Wire Gauge).

Used for fused and non-fused electrical applications in a range of settings, this type of DIN rail terminal is used for power supplies, energy management, telecommunications, lighting controllers and air conditioning controls. It’s perfect for panel boards and junction boxes and is easy to screw down and fit. The component also meets IEC 898-1 and IEC 998-2-1 (low-voltage circuit breaker) standards

Features and Benefits

• 12-way DIN (Deutsches Institut für Normung, or the German Institute of Standardisation) screw-down rail terminal
• Clear in colour
• Voltage rating of 450 V
• Current rating of 100 A
• 42 mm (H) x 104.5 mm (L)
• Wire size of 10 to 5 AWG (American Wire Gauge)
• Cable CSA of 16 mm², 6 mm²
• Maximum operating temperature of +85°C
• Meets IEC 898-1 and IEC 998-2-1 (low-voltage circuit breaker) standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

IEC 898-1; IEC 998-2-1

RS PRO Datasheet
