3030417, Phoenix Contact D-ST Series End Cover for Use with DIN Rail Terminal Blocks

ST 4-FSI/C DIN Rail Terminal Blocks - Phoenix Contact

The ST 4-FSI/C range from Phoenix Contact are DIN rail, spring-cage terminal blocks that feature a C type fuse. This range of DIN rail, fused terminal blocks form a tight connection to your wire thanks to the spring-cage technology, it also means an effortless install! Simply push-in your wire. Not to mention, the fuse in this terminal block is a flat fuse and helps add another level of protection. DIN rails NS 35/7.5 and NS 35/15 are supported for the ST 4-FSI/C range of terminal blocks and the blocks have a nominal current of 30 A with a nominal voltage of 400 V.

The housing on these fused terminal blocks is made from a durable polyamide material and the contacts are copper with a plating. These devices accept 28-10 AWG and have a cross-section of 0.08 mm² - 6 mm².

Features and benefits:

• Fused for added protection


• The ST 4-FSI/C fuse terminal block accommodates flat-type fuses according to ISO/DIS 8820/DIN 72581-3 or the TCP .../DC32V thermal miniature circuit breaker as the fuse element


• Versions with LED for easily indicating a fuse that has been blown


• Fits on an NS 35/7.5 and NS35/15 DIN rail


• Operating temperatures of -60°C to 85°C


• Spring-loaded fuse terminals adopt the functional operation of the fuse holder and potential distribution

Typical Applications:

• Tested for railway applications

Complete Line:

The ST series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.

If you'd like to learn more about Complete Line, please click here.

Note

Cable cross-sectional area quoted refers to cable with rigid conductors

Certificate No.

KEMA 00ATEX2052 U

Group and Category

II 2 G D Ex e II

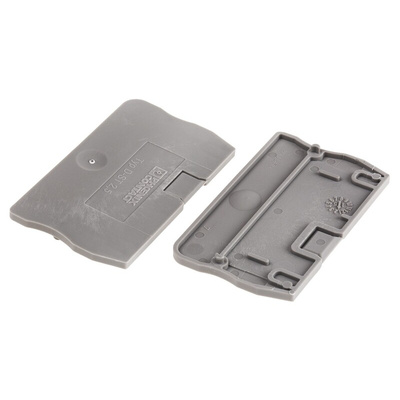

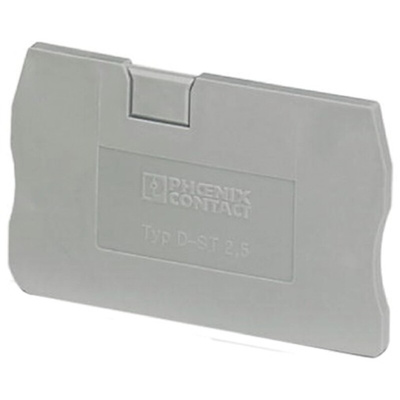

Phoenix Contact End Cover, PA Material, Pack of 50 - D-ST 2,5 - 3030417

Keep your terminal blocks clean and working smoothly with this end cover from Phoenix Contact. It's made from tough PA material and designed to prevent contamination and help avoid electrical hazards. As this material is also resistant to corrosion and wear that could interfere with your electrical connections, using this cover helps boost the service life of your setup.
To ensure an accurate fit, the cap is moulded to slot onto terminal blocks from the D-ST series. Installation is a matter of simply clipping it on and there's an external notch for easy removal when you need to maintain or adjust your setup. Each pack contains 50 pieces, so you'll have plenty on hand for lots of jobs. Covers like this are commonly used with electrical systems in settings such as factories, laboratories and building controls.

Features & Benefits

• Dimensions of 48.6 (L) x 29.1 (H) x 2.2mm (W) for a precise fit
• Reliable option for use in demanding operating temperatures from -60°C to +105°C
• Light weight of 1.88g adds minimal strain to your terminal block

Datasheet 3030417
