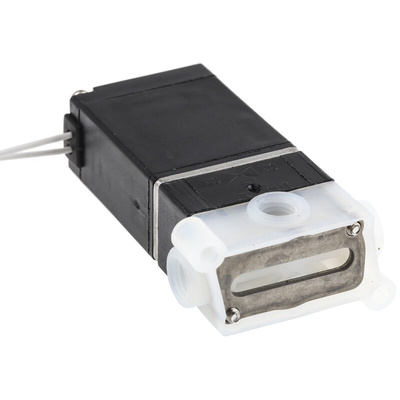

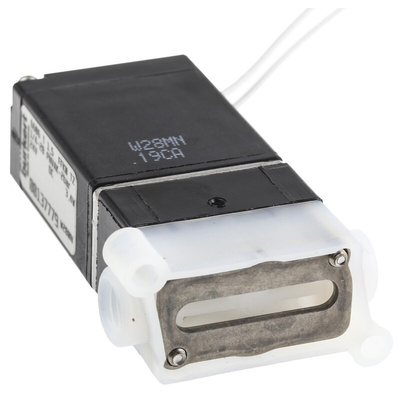

Burkert Solenoid Valve
The Burkert 6606 series 1/4in UNF female solenoid valve has a supply voltage of 24VDC. This 3-port valve is made of ETFE material with FFKM seal for high chemical resistance. It has a compact design with 16 mm width and Cv ratings up to 0.058. It is used in a medical laboratory and scientific applications including analysis, distribution, dosing, mixing, filling and batching.
Features and Benefits
Flow factor (Kv) is 0.025m³/h
Maximum working pressure is 2bar
Power consumption is 3.4W
Miniature design
Low dead volume
Direct acting 2-way normally closed and 3-way universal functions
Operating temperature ranges between -10°C and 55°C
Certifications
IP65 rated
Техническая спецификация
Type 6605/6606 Solenoid Valve Data SheetType 6605/6606 Solenoid Valve Instruction Sheet
