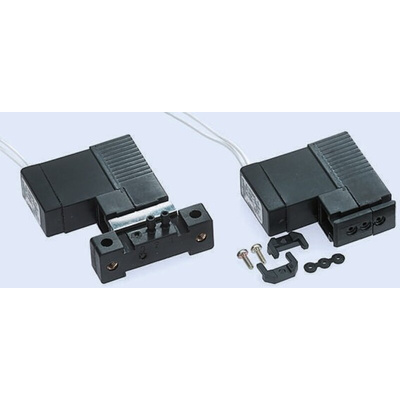

Burkert Solenoid Valve 153118, 3 port(s) , 24 V dc, Клапан

2 / 2 or 3 / 2-way mini solenoid valve

2 / 2 or 3 / 2 way (any connection) model
With separating membrane. Medium only comes into contact with housing and membrane
With manual actuation
Very low clearance volume, easy to flush and empty
Extremely low power consumption
Suitable for material-compatible media such as water, compressed air, aqueous solutions
Ideal for use as a replenishment, metering, mixing and distribution valve for small quantities (very short switching times)
For analysis, medical and laboratory equipment
Suitable for vacuum applications

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

3/2-Way Magnetic Valve Data Sheet
