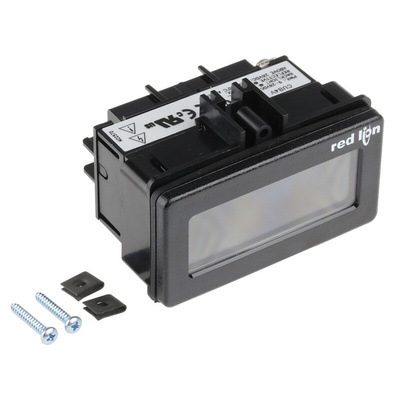

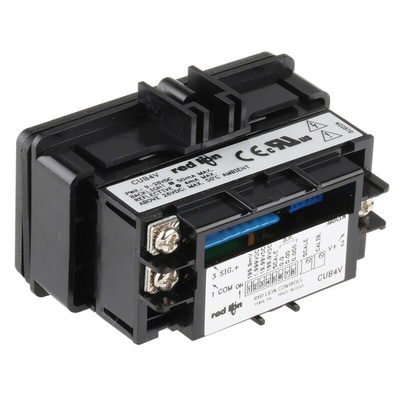

CUB4V020, Red Lion Digital Voltmeter DC, LCD Display 3.5-Digits ±0.1 %, Вольтметр

CUB4V LCD voltmeter, 3.5 digit, 200 V, 15 mm character height

3.5 digit, 15 mm bright display
Automatic offset correction
Freely selectable decimal point
Free scaling via potentiometer
Protection class IP65

Approvals

UL, CSA

Red Lion Digital Voltmeter

The Red Lion digital voltmeter is an indicator designed using the latest technology for high-quality. The unit has a 3.5 digit LCD with 0.6in (15.2mm) high digits. The unit is made of a lightweight, high impact, plastic case with a clear viewing window for use in industrial environments. The sealed front panel stands wash-down and/or dusty environments when properly installed. The optional micro line/sensor power supply is can be attached to the rear of an installed unit to provide the necessary power. The optional supply can be powered from 85VAC to 250VAC source.

Features and Benefits

Compact
Affordable
DIP switch selectable decimal point

Certifications

NEMA 4X/IP65 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

LCD 5.5 to 19mm Digit Height

All have an operating temperature range of 0 to 50°C unless specified otherwise.

Model Cub4V Miniature DC Voltmeter Instructions

Datasheet
