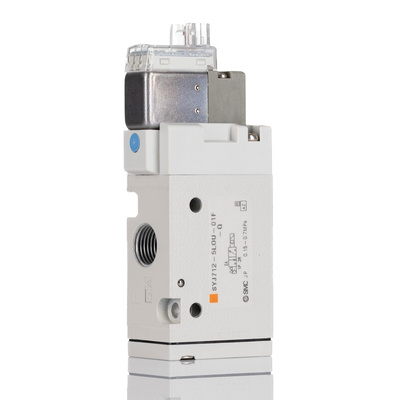

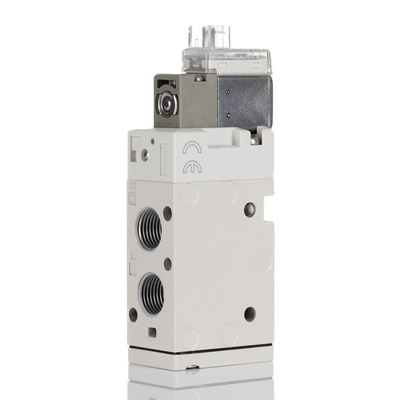

SYJ712-5LOU-01F-Q, SMC 3/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/8 SYJ700 Series 24V dc, Клапан

SMC Solenoid Valve

The SMC SYJ7000 series 3/2 ports body ported solenoid valve has a supply voltage of 24VDC. This valve has a 1/8in G port connection. It is manufactured to offer maximum performance in a space-efficient design, making it perfect for use as a single valve where space is at a premium. Thermal heat generation is reduced as the SYJ has a low power consumption of 0.4W as standard. This allows for direct control by PLC output relays, helping to decrease cost and improve performance. This valve is available with a lead wire of length 300mm without a connector.
SMC SYJ & VF series
Low power consumption enables direct operation by a PLC. They have a non-locking manual override. Operating temperature ranges between -10°C and 50°C.

Features and Benefits

Maximum flow rate is 626L/min
Operating pressure ranges between 0.15MPa and 0.7MPa
Operating temperature ranges between -10°C and 50°C

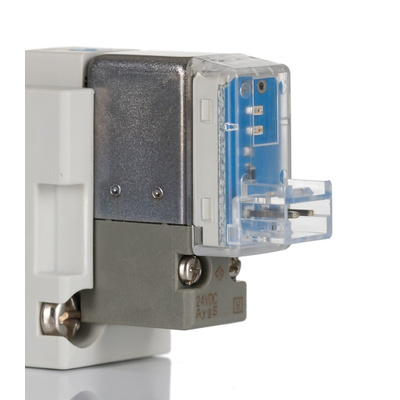

Surge voltage suppressor (Non-polar type)

Certifications

IP65 rated

Datasheet

Contains SVHC - Bis(2-ethylhexyl)phthalate (DEHP) - CAS No. 117-81-7

Contains SVHC - Benzyl butyl phthalate (BBP) - CAS No. 85-68-7
