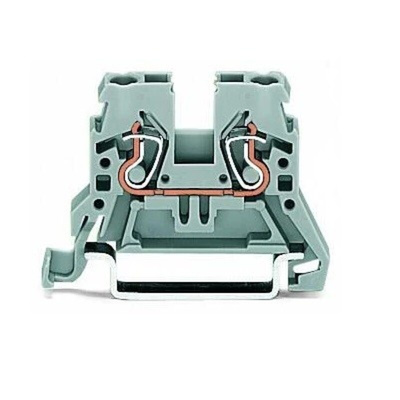

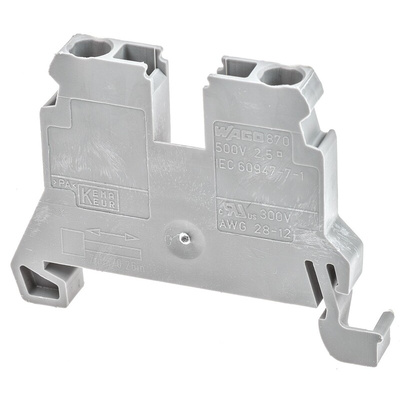

870-901, Wago 870 Series Grey DIN Rail Terminal Block, 2.5mm², Single-Level, Cage Clamp Termination

Wago DIN Rail Terminal Block, 2 Conductors, 5mm Pitch - 870 Series - 870-901

Making connections in your setup is a piece of cake with this DIN rail terminal block from Wago. It clips onto your rail without the need for special tools, making it a cinch to install. The unit has a single-level structure with space for two conductors, so you can set up a dual wiring system. For flexibility, it accommodates wires ranging in size from 28 to 12AWG. The robust CAGE CLAMP® terminals lock down wires to ensure your electrical connections stay firmly in place.

Features & Benefits

• Front entry wiring simplifies installation
• Tough PA66 housing for resistance to impact and wear in harsh environments
• Side and centre marking slots make it a breeze to label components for ease of identification
• Low power loss per pole of 0.766W for energy efficiency

Applications

• Power stations
• Marine engineering
• Packaging facilities
• Security systems

What's the current rating of this terminal block?

This terminal block has a current rating of 24A, so you can count on it to safely handle applications in high-power electrical systems.

870 Series

Compact screwless DIN rail mount terminals suitable for use with TS35 ’Top Hat’ rails. The compact size of the terminal is possible due to the new cage clamp designed to satisfy the need to reduce cabinet space on site.

Accept cables 0,08 - 2,5 mm²/4 mm² flexible wire
Front cabling enables further space saving
Rated at: 500V/6kV/24A
Jumper bar rated current: 18A
Suitable marker cards and labels also available (each pack contains 5 cards, with 100 markers per card)

870-901Terminal Block Technical Data
