870-402, Wago 870 Series Jumper Bar for Use with 870 Series Terminal Blocks, 18A

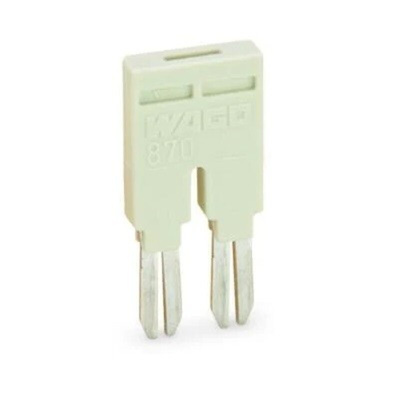

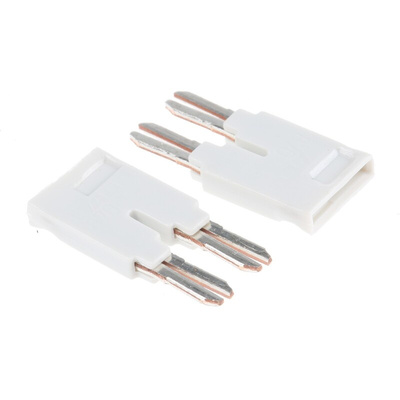

Wago Jumper Bar, 2-Way Type, 9mm Width - 870 Series - 870-402

Simplify your circuit board setup with this Wago jumper bar. The connector lets you hook up adjacent terminal blocks from the 870 series in a flash for superior wiring efficiency. Installation is fuss-free, as there's no need to run individual wires between terminals. This also gives you a neat-looking PCB and makes components easy to identify. A current rating of 18A assures you the unit is compatible with demanding industrial circuits.

Features & Benefits

• Push-in connection technology means there's no need for tools
• Light weight of 0.9g puts minimal strain on your circuit board
• PA insulation for protection against electric shock
• Stops burning in 10 seconds or less in the event of a fire, ensuring workplace safety

Applications

• Dairies
• Power generation plants
• Medical and pharmaceutical manufacturing
• Process control

How many of these jumper bars can I insert in one terminal jumper slot?

This handy connector is designed so that you can insert two jumpers into one slot. This lets you use it for continuous commoning while leaving your second jumper slot open for extra connections.
