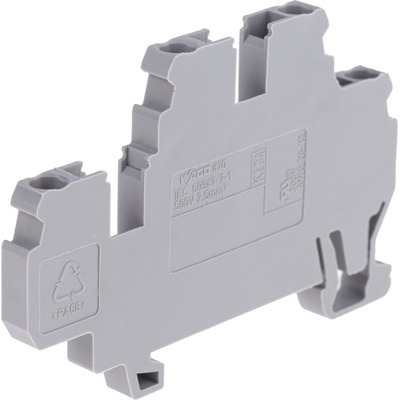

870-501, Wago 870 Series Grey Terminal Block, 2.5mm², Double-Level, Cage Clamp Termination

Double Deck Terminals

Double-deck terminal blocks without marker carrier. The DIN Rail connector from the TOPJOB S Range comes in grey housing.

Features and Benefits

• 4 Conductor-through terminal block L
• Cage Clamp® Connection
• Front entry wiring
• DIN Rail mounting on TS 35 rail

Wago Terminal Block, 5mm Width, 24A Current Rating - 870 Series - 870-501

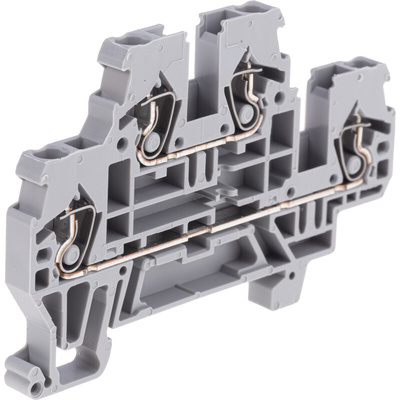

Take your feed-through connections up a notch with this double-level terminal block from Wago. There are two connections on each level for linking four wires in one unit. This nifty double-decker has a neat width of 5mm, making it handy for saving space on your DIN rail. Front entry wiring means the job's faff-free when you're working in compact cabinets. The cage-clamp terminals on this piece grab your wires automatically, so your setup is vibration-resistant without the need for tightening, speeding up installation time.

Features & Benefits

• Accepts wire sizes between 28 and 12AWG for connection flexibility
• Snap-on feet for speedy, tool-free rail mounting
• Flame-retardant material boosts the fire safety of your electricals
• Suitable for continuous operation between -60°C and +105°C, so extreme temperatures won't stop it working reliably

Applications

• Automotive industry
• Manufacturing sector
• Marine engineering

What's this terminal block made from?

It's made from rugged polyamide with conductive copper conductors to keep it dependable.

What end plate fits this component?

Wago's double-decker end plate (388-7529) fits neatly on the open side of this terminal block.

870 Series

Compact screwless DIN rail mount terminals suitable for use with TS35 ’Top Hat’ rails. The compact size of the terminal is possible due to the new cage clamp designed to satisfy the need to reduce cabinet space on site.

Accept cables 0,08 - 2,5 mm²/4 mm² flexible wire
Front cabling enables further space saving
Rated at: 500V/6kV/24A
Jumper bar rated current: 18A
Suitable marker cards and labels also available (each pack contains 5 cards, with 100 markers per card)
