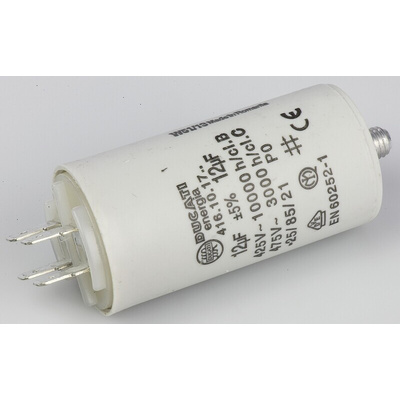

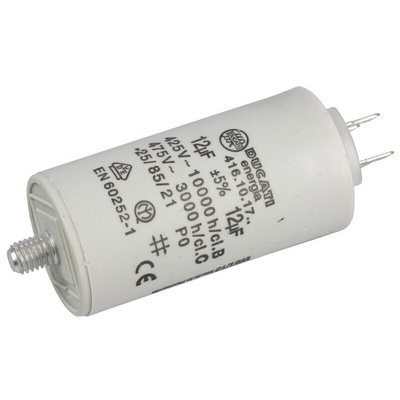

4.16.10.17.64, Ducati Energia 12μF Polypropylene Capacitor PP 450V ac ±5% Tolerance Stud Mount 4.16.10 Series, Конденсатор

3887995
Номер производителя: 4.16.10.17.64Производитель: Ducati Energia
Цена за шт.
3138.00 руб. (С НДС) *
Количество 10+ 50+ 100+
Цена 2007.00 руб. 1596.00 руб. 1521.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

4.16.10/15 Series

Ducati 4.16.10/15 series are snap-in (quick connect) Polypropylene film capacitors. They are an electric motor capacitor used to start and run. The case and cover feature a self-extinguishing plastic material, the capacitive element is sealed with polyurethane resin. These 4.16.10 series film capacitors are supplied with the main international approvals (IMQ-VDE-UL-GOST). Operating temperature -25°C to +85°C

Features and benefits

Small and Compact

Self-healing property avoiding short-circuits

Low losses non-inductive winding

40mm Diameter

No leakage risk

IP00 Protection rating

Applications

Motor control and drive

Note

Fixing nut not supplied.

Standards

VDE 560-8, CEI 33-3, SEV 1029

Standards

VDE 560-8; CEI 33-3; SEV 1029

Техническая спецификация
pdfMotor Capacitors - Data Sheets
Высота:
70мм
Диэлектрик:
PP
Ёмкость:
12µF
Напряжение:
450В перем. тока
Отклонение:
±5%
Размеры:
36 (диаметр) x 70мм
Серия:
4.16.10
Тип клеммы:
Stud Mount
Тип монтажа:
Stud Mount
