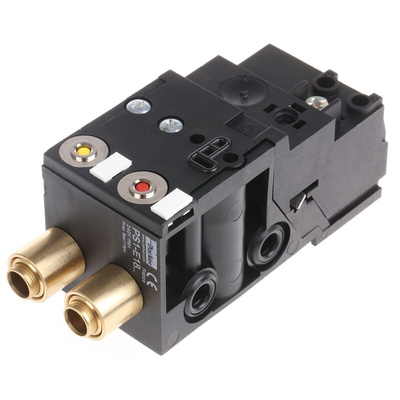

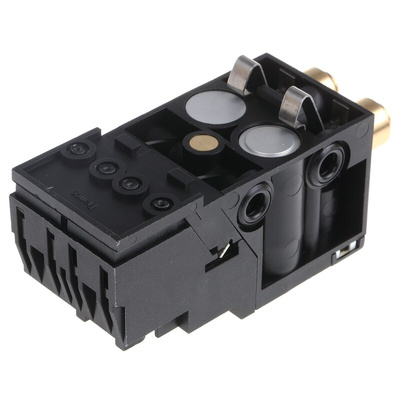

PS1-E186, Parker 4/2 Pneumatic Solenoid Valve - Solenoid/Spring PS1 Series, Клапан

Parker Modular Sub-base Valve

The Parker PS1 series 4/2 ports modular sub-base valve has a maximum flow rate of 200L/min. This valve has a 6mm port connection and solenoid actuated with a spring return. This valve is designed for manifold assembly and DIN rail mounting. This valve acts as a functional interface between electrical/electronic control systems and pneumatic drives. It is ideal for use with programme controllers.
Warning:
Compressed air, while generally considered as a safe source of energy, must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.

Features and Benefits

High performance and low power 1.2W solenoid operators with non-locking manual override
High speed poppet valve system
Integrated terminal block connections
Low power consumption
Maximum flow rate is 200L/min
Operating pressure ranges between 3bar and 8bar
Operating temperature ranges between -10°C and 60°C
Pneumatic output indicators for easier system fault diagnosis
Rapid installation and easy maintenance

Pneumatic Interface Modules PS1
